Cool New 85v~260V 110V~ 220V 4CH RF Wireless Remote Control Relay Switch Security System Garage Doors Gate Electric Doors 9pcs/lot


Remote Promo Sale Product provide door window entry alarm, door viewer, door lamp Fast Offers 85v~260V 110V~ 220V 4CH RF Wireless Remote Control Relay Switch Security System Garage Doors Gate Electric Doors 9pcs/lot. Get 10% discount Now! Now US $36.00/piece. Hurry buy Now before back to normal price! Normal price US $40.00. Dont waste your time. Buy Now only in JIN HONG INTERNATIONAL Co.,Ltd shops Trusted Seller Store!

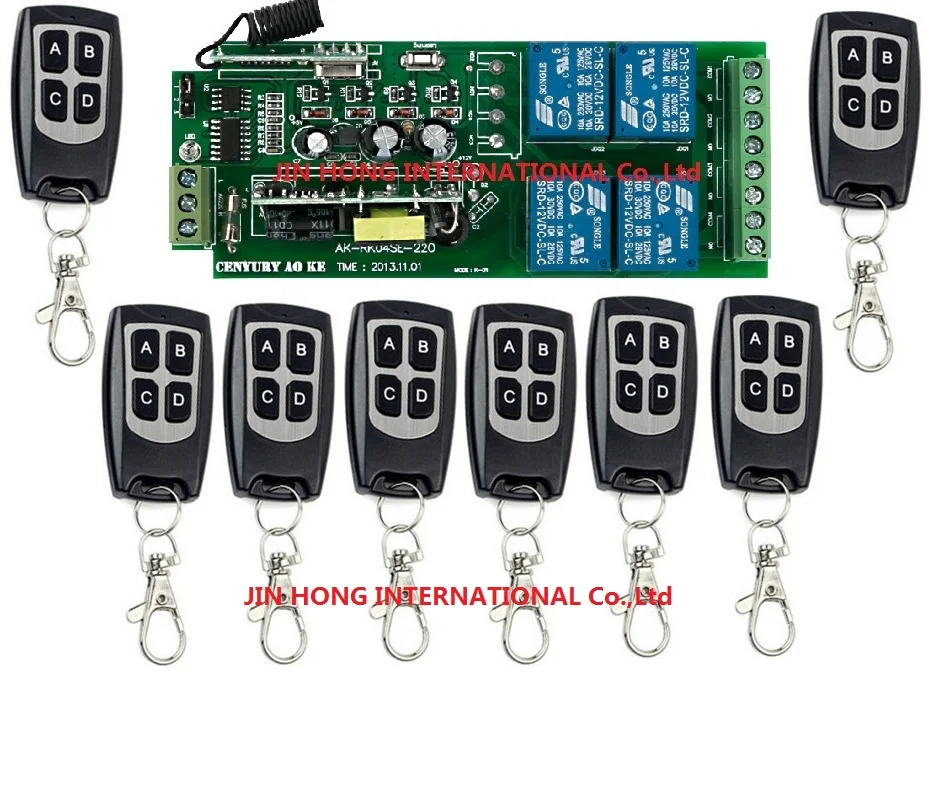

85v~260V 110V~ 220V 4CH RF Wireless Remote Control Relay Switch Security System Garage Doors Gate Electric Doors 9pcs/lot (1 x Receiver & 8 x Transmitter) +free shipping

Feature:

· Wireless control, easy to install

· Control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances with AC220V,AC85V-260V OR DC12V..

· You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can passthrough walls, floors and doors.

· This switch can learn different coding remote controls (such as 2262,1527 ect.)

· One/several transmitters can control one/several receivers simultaneously.

· If you use two or more receivers in the same place, you can set them with different codes. If you use multi-button transmitter, youcan control the controller with different buttons, it won’t affect each other.

· Operating Frequency: 315MHz / 433MHz

· The wireless receiving controller, with high confidentiality, stable performance, low power consumption characteristic, jump line or dial the code switch coding.

About Receiver:

· Model No.:RK04SE-220

· Channel: 4 CH

Radio Frequency:315MHZ/433MHZ

Operating Voltage:AC85V-260V

Operating Type:Jog /Momentary/Non-Latched(Press and hold->On,Release->Off)

Interlock /Latched(Press -> On; Press other button -> Off)

Self-lock/Toggle(Press->On,Press again->Off)

· Coding Type: learning code

· Maximum Working Current: 10A

· Output Mode: Without voltage output(also called Contact output)

· Step-down approach: resistance-capacitance(RC)

· size: 107*48*21mm


About Working way/ output Way:

· Output Working way for learning code switch-Jog, Self-Lock, interlock, changed by soldering or jump cap.

Momentary/ Jog--Press and hold -> On; Release -> Off.

Toggle/ Self-lock--Press -> On; Press again -> Off·

Latched/ Interlock--Press -> On; Press other button -> Off.

About Transmitter:

· Model No.:HD040

· Buttons: 4 Buttons

· Working Voltage:DC12V( DC12V 27A Battery x1 )

· Operating frequency :315/433MHz

· Remote Control Distance: 20-100m

· Encode: Fixed code by soldering and learning code

About Learning and clearing Method:

Learning:· Press the learning key, it means the controller putting in thelearning state when the indicator OFF, then please press any buttons of the remote control to transmit signals, the indicator will flash for 3 times,which means successfully studied.

· After pressing any buttons of the remote control to transmit signal, the indicator didn’t flash, 10 seconds later it still recovers to normally on, it means study unsuccessfully.

Clearning: Hold press learning button about 8 seconds,,indicator from OFF toON,then press remote ,receiver did not work ,it means clearning codesuccessful.

Pay attention:

· The default setting of output way is SELF-LOCK; If you need other output way can leave a message to change it for you before the delivery.

· Here is the 4 Channel switch and 4-button remote control .you can choose the working way as you need.

· The theoretical distance is 20-- 100m, which shall be operated in an openground; no barriers and no any interference. However, in actual operation, it is hindered by trees, walls or other obstacles, or interfered by other signals. Therefore, the actual distance cannot reach 100m. If you need longer range, please choose other series of remote control, such as 1000m/3000ft; or you can add the External Extend Antenna or Transponder on the receiver to extend the range.

Package Include:

· 1 x Receiver (with cover)

· 8 x Transmitter (with battery)
