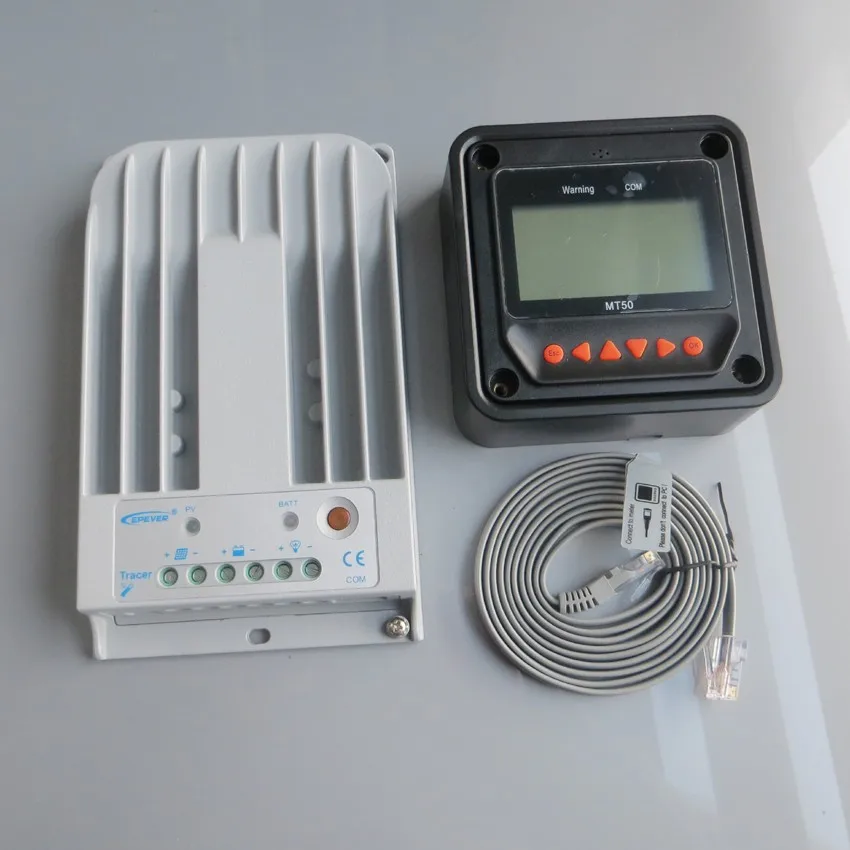

Remote Promo Sale Product provide control liner, control f4, control french Hot Flash Deal 20A 12V 24V New Tracer 2215BN 20amps Programmable MPPT Solar Charge Controller with MT50 LCD display Remote meter. Get 20% discount Now! Now US $94.52/piece. Hurry buy Now before back to normal price! Normal price US $118.15. Dont waste your time. Buy Now only in StarSolar Store Trusted Seller Store!
New Tracer series is EPsolars second generation of MPPT controller. Compared with CLASSIC Tracer series, it has extensive communication ability. And the die-cast aluminum design ensures excellent heat dispersion.
Features:
. Innovative MPPT technology
. Peak conversion efficiency of 98%
. High tracking efficiency up to 99%
. Several seconds tracking speed
. Die-cast aluminum design and nature cooling
. Temperature compensation
. Diversified load control to meet different requirements
. Four battery type options: Sealed, Gel, Flooded, and USER
. Intelligent lighting and timer control for solar lighting system
. Energy statistics function
. RS485 ports with MODBUS communication protocol
. Optional PC monitoring software and remote meter for real-time monitoring and battery management parameter setting
. Field upgradable firmware
Electronic Protections:
. PV short circuit protection
. PV overvoltage alarm protection
. PV current limiting protection
. PV reverse polarity protection
. Battery overcharge protection
. Battery over discharge protection
. Battery reverse polarity protection
. Load overload protection
. Load short circuit protection
. Overheating protection
Specification:
| Model | Tracer1215BN | Tracer2215BN | Tracer3215BN | Tracer4215BN |
| Nominal system voltage | 12/24V auto work | |||
| Rated battery current | 10A | 20A | 30A | 40A |
| Rated load current | 10A | 20A | 20A | 20A |
| Max. PV open circuit voltage | 150V | |||
| Max. battery voltage | 32V | |||
| Max. PV input power | 130W (12V) | 260W (12V) | 390W (12V) | 520W (12V) |
| 260W (24V) | 520W (24V) | 780W (24V) | 1040W (24V) | |
| Equalize charging voltage | Gel: 14.2V, Sealed: 14.6V, Flooded: 14.8V,USER: 9~17V | |||
| Boost charging voltage | Gel: 14.2V, Sealed: 14.6V, Flooded: 14.8V,USER: 9~17V | |||
| Float charging voltage | Gel /Sealed /Flooded: 13.8V, USER: 9~17V | |||
| Low voltage reconnect voltage | Gel /Sealed /Flooded: 12.6V, USER: 9~17V | |||
| Low voltage disconnect voltage | Gel /Sealed /Flooded: 11.1V, USER: 9~17V | |||
| Self-consumption | ≤50mA(12V) ≤27mA(24V) | |||
| Grounding | Common negative | |||
| Temp. compensation | -3mV/C/2V | |||
| Communication Port | RS485 / RJ45 interface | |||
| Working temperature | -35C - +55C | |||
| Storage temperature | -35C - +80C | |||
| Humidity | ≤95% N.C. | |||
| Enclosure | IP30 | |||
| Overall dimension | 196x118x36mm | 217x143x56mm | 281x160x60mm | 303x183x64mm |
| Terminal | 4mm2 | 10mm2 | 16mm2 | 25mm2 |
| Net weight | 0.9kg | 1.5kg | 2.3kg | 2.9kg |
available on request
