32Bit Official Alexmos BaseCam BGC3.0 SBGC V3.0 ARM 3axis Gimbal Controller Sensor SimpleBGC 3 axis
The controller can be used for building high-quality 3-axis camera stabilizing systems which can be mounted to UAV and for building handheld camera stabilizers. This version of the controller is our new direction in the development of the stabilizing solutions. It will replace the previous 8-bit version of the SimpleBGC controller, keeping 100% back-compatibility, but adding the new fuctionality. Features:
- 32-bit MCU — ARM Cortex M4. Effectively calculates the complex tasks for 3-axis stabilization.
- Allows camera control with the RC or analog joystick.
- Use several switchable profiles for different modes of operation
- Supports variety of RC protocols: PWM, Sum-PPM, spektrum and s-bus.
- Battery voltage monitoring, compensating voltage drop in the PID-regulator.
- Low battery alarm (output to 5V active buzzer).
- Increased number of inputs for controlling signals + 3 additional reserved input/output AUX1-AUX3.
- Can supply up to 1A current for external devices on the 5V power line.
- Dedicated UART-socket to connect optional Bluetooth module
- Reverse-polarity protection, overheat and overcurrent protection
- USB interface for the PC connection, to configure, control and upgrade firmware.
- Graphical user interface to manage the settings. Windows / OS X / Linux versions.
- Control through the Serial-protocol using dedicated API.
- Improved attitude estimation algorythms
- Optional second IMU, that will increase the short-term precision of the stabilization 10x-30x times and will make stable work in any frame position.
Specifications:
- Size of the board: 50×50 mm
- Distance between the mounting holes: 45 mm
- Diameter of the mounting holes: 3 mm
- Power supply voltage: 8–25 V (3s-5s LiPo)
- Maximum motor current: 1,5 A
- 5V output current to power external devices: up to 1 A
Offical website: basecamelectronics.com/simplebgc32bit/
Package Content:

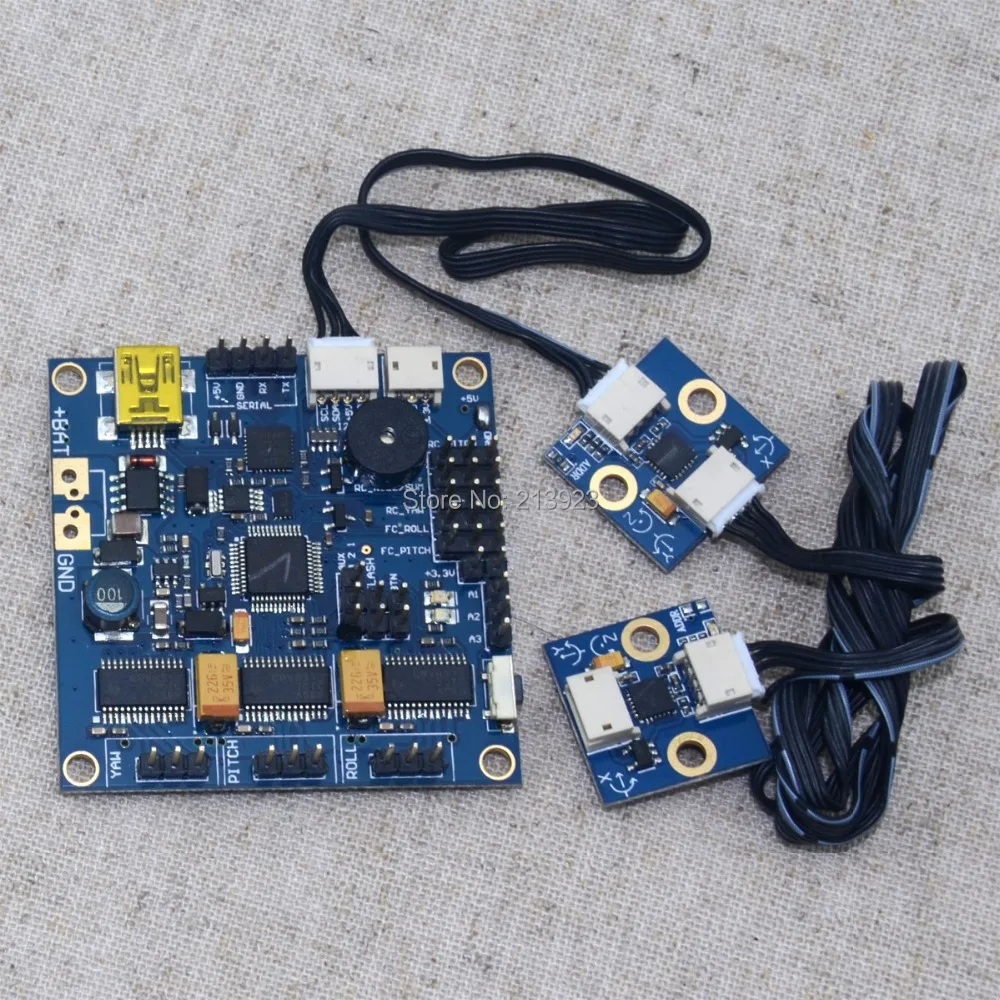

1 x Gimbal Controller(this is what you will get in the picture)
