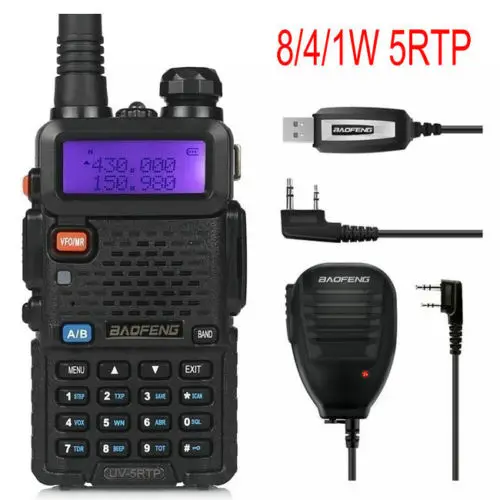

Big New Baofeng UV-5RTP 136-174/400-520 MHz Dual-Band FM1/4/8W Two-way Ham Radio Walkie Talkie with Remote Speaker Programming Cable


Remote Promo Sale Product provide walkie talkie, radio walkie talkie, baofeng uv-5rtp Hurry! Special Baofeng UV-5RTP 136-174/400-520 MHz Dual-Band FM1/4/8W Two-way Ham Radio Walkie Talkie with Remote Speaker Programming Cable. Get 5% discount Now! Now US $41.99/piece. Dont waste your time. Buy Now only in Sparkforce Trusted Seller Store!

1: Power Transistor, high Output Power, Longer Effective Talking Range

2: Upgrade the frame material. Metallic, more durable and more fashionable.

3: With full high two colors LED definition display, the screen exquisite clarity.

Description:

The transceiver is a micro-miniature multiband FM transceiver with extensive receive frequency coverage, providing local-area two-way amateur communications along with unmatched monitoring capability.

Actual Measurement & Comparison:

Please note that: In 136-174/400-470 Mhz the radio can achieve tri-power(especially for high power level), but if you want the radio used in above 500Mhz, the maximum output power would be about 6.6w.

Frequency Range: 140-150/430-440MHz (Can be unlocked to 136-174/400-520MHz via programing cable)

Dual-Band Display, Dual Freq. Display, Dual-Standby

Output Power: 8/ 4 /1Watts Triple Power

128 Channels 50 CTCSS and 104 DCS

Built-in VOX Function

1750Hz Brust Tone

FM Radio (65.0MHz-108.0MHz)

LED Flashlight

Large LCD Display

Hight /Low RF Power Switchable

25KHz/12.5KHz Switchable

Emergency Alert

Low Battery Alert

Battery Saver

Time-out Timer

Keypad Lock

Monitor Channel

Channel Step: 2.5/5/6.25/10/12.5/25KHz

ROGER SET

Specifications:

General

Frequency Range

65-108MHz (FM Receive only)

136-174 MHz and 400-519.995 MHz (TX/RX)

Channel No.

128

Frequency Stability

±2.5ppm

Antenna

High gain Dual-Band Antenna

Antenna Impedance

50Ω

Operating Voltage

DC 7.4V

Mode of operation

Simple or semi-duplex

Dimension W x H x D

100 x 52 x 32 mm

Weight

250g including battery, antenna

Transmitter

Output power

8W / 4W / 1W (Max 8W)

Modulation Mode

16kΦF3E / 11kΦF3E

Maximum deviation

5kHz(Wide) / 2.5kHz(Narrow)

Spurious Radiation

7μW

Adjacent Ch. power

≤-65dB(Wide) / ≤-60dB(Narrow)

Pre-emphasis characteristics

6dB

Current

≤1.6A(5W)

CTCSS/DCS deviation

0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)

Intermediation sensitivity

8-12mv

Intermediation distortion

10

Package:

1 x Baofeng * UV-5RTP * (VHF136-174MHz / UHF 400-519.995MHz)

1 x 7.4V 1800mAh Li- ion Battery Pack

1 x Booster Antenna 136-174/400-519.995Mhz

1 x Earphone Mic/Headset

1 x Belt Clip

1 x Hand Strap

1 x Manual

1 x adapter

1 x Desktop Charger ( 100V ~ 240V )

1 x Baofeng Original Speaker Mic

1 x USB Programming Cable
