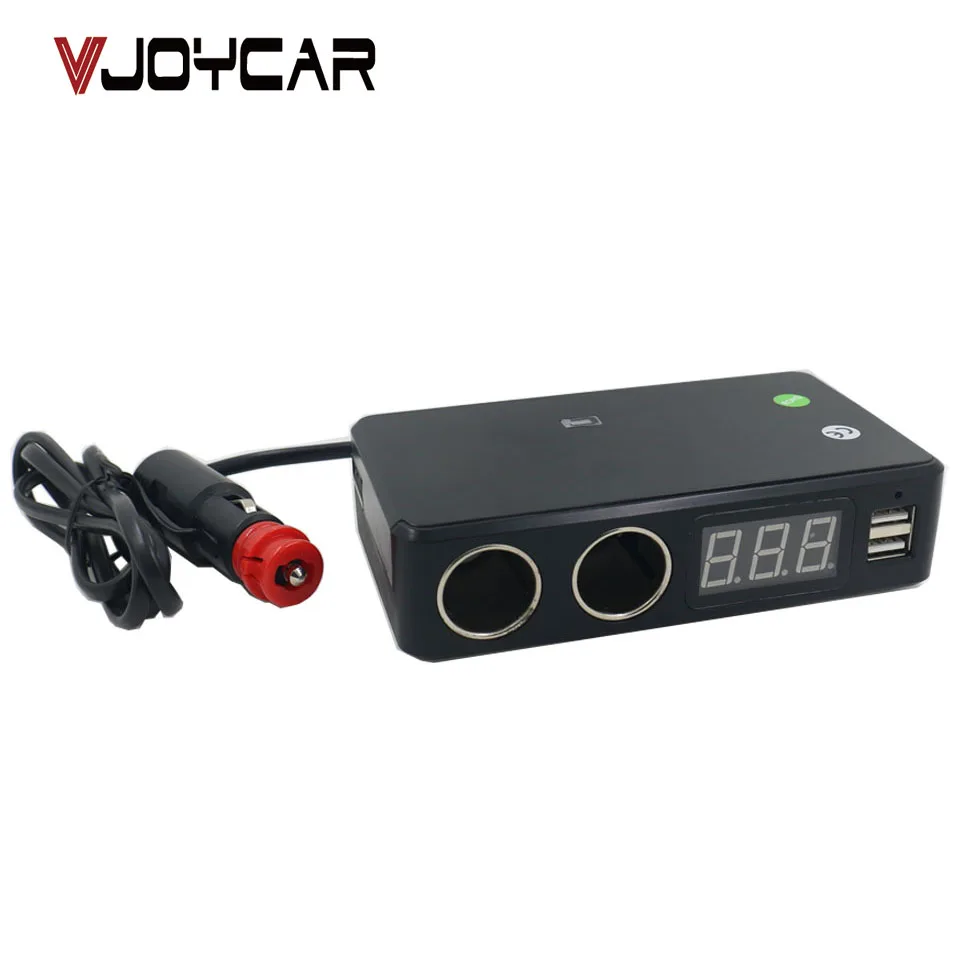

2018 Limited VJOYCAR C20T Universal GPS Tracker Car Adaptor Design, Plug and Track!

Remote Promo Sale Product provide universal gps tracker, gps tracker, gps tracker car Terrific Promotion VJOYCAR C20T Universal GPS Tracker Car Adaptor Design, Plug and Track!. Get 15% discount Now! Now US $69.70/piece. Hurry buy Now before back to normal price! Normal price US $82.00. Dont waste your time. Buy Now only in VJOYCAR Official Store Trusted Seller Store!

VJOYCAR C20T Special gps tracker chipset,hidden in the car charger+voice monitor recorder+vehicle battery checking+2 USB ports

Attention:

1.Note: this is 2G GPS tracker, its said Austrlia,Singapore,Mexico,Canada and USA will stop 2G service since 2017. If you are from above countries, please kindly buy 3G gps trackers. 2. Pls buy VJOYCAR(VJOY) original gps tracker from the ONLY official shop in aliexpress: What we sell are not only the product, but also service. Please kindly offer your "order number" if you need any assistance when make config or usage, our skilled after-sales service are ready for you all the time. ​

Product High Lights

1)From the sharp,its a regular car charger with 2 USB port,but its built in gps tracking chipset; 2)Voice monitor recorder remotely; 3)LED Display real time battery voltage; 4)180W supper supply,can support 2 electroics work at the same time; 5)Free gps tracking software; 6)Can reply street name to phone via text.

Main Features

• Hidden Professional GPS Tracker with 2200mAh Li Battery • Instant call alert for anti-theft when vehicle motion and break-out is detected • GSM+GPS positioning with Google map tracking • Remote Sound Monitoring function enables user to hear all in-car conversation clearly • Multi Car Adaptor • Battery Checker to display the Voltage of car battery on LED • 2 USB Output with 3.1A • 180W with 2 Cigarette Lighter • Auto-recovery fuse • Car Monitor via sound and vibration enables user to monitor the in-car situation all the time. Every year, numerous children die because of heat stroke from being left in parked cars. Car monitor is an ingenious solution for giving vehicles an added layer of safety for protecting children

Hardward Teach specification

Input Voltage: DC 12-24V Input Current: without load: 15mA MAX, with load: 1.8A MAX output voltage: without load: DC 5.0V-5.4V, with load: DC ≥4.75V USB output current: 3100mA MAX USB Output Ripple Noise: 200mV MAX Input Protection: There is a Self-resetting 3A safety fuse installed, and it will automatically cut off and recover when detecting over power occurred. Output Protection: Both input and output power will be limited when short circuit occurs,and system will resume to the normal charging state automatically afterward.

Product Photo Gallery

SMS Commands List

Function	Command	Description
APN Setting	*apn*AXXX*BXXX*CXXX*	This command sets the telecom Access Point Name. BXXX refers to user name, CXXX refers to password. eg,*apn*cmnet*
Master Setting	*master*123456 *+1XXXXXXXXXXXX*	+1 refers to the country code. XXXXXXXXXXXX is the cellphone number. Please make sure country code is included, and 0 is not needed before cell phone number eg,*master*123456*+8613621925935*
Password Changing	*password*654321*	Original password is default as 123456. 654321 refers to new password.
Vibration Sensitivity Setting	*sensitive*1-5*	1 being the most sensitive, 5 the least. Default setting is 1.
Motion Alert	*callalert*	Call alert will call master number 2 times when motion is detected after 3 minutes non-movement.
	*smsalert*	SMS notification will sent to master number when motion is detected after 2 minutes non-movement.
	*alertoff*	End Call/SMS alert
Period Motion Alert On	*continuousalert* 0-23*0-23*	Device will enable motion alert function at appointed period of time Remark: Only TK05 TK10 Tk15 TK20 have this function.
	*periodlocateoff*	End Period Motion AlertRemark: Only TK05 TK10 Tk15 TK20 have this function.
LLC Query	*locate*	Latest information of latitude, longitude, date, time and ranking.
Address Query	*locateaddress*	Address information of current location.
Google Map Search	*locatemap*	Google Map link with current location
Real-time Tracking	*routetrack*1-99*	1-98 represents hours of accumulated data, 99 means always on. eg,*routetrack*1*
		(routetrack,rsampling and rupload only upload data when device is moving.)
Sampling Interval	*rsampling*1-999*	1-999 represents seconds of data collecting interval, default as 10 seconds. eg,*rsampling*10*
		(routetrack,rsampling and rupload only upload data when device is moving.)
Upload Interval	*rupload*60-999*	60-999 represents seconds of data uploading interval, default as 60 seconds, minimum rate should not be less than 60. *rupload*60*
		(routetrack,rsampling and rupload only upload data when device is moving.)
Real-time Tracking Off	*routetrackoff*	End routetrack function.
Check Location	*check*0-99*	Track by hour. 0-99 represents hours of data upload interval, default as *check*0* eg, *check*1* (check and checkm upload data when device both stationary and moving.)
	*checkm*10-99*	Track by minute. 5-99 represents minutes of data upload interval eg,*checkm*10*
		(check and checkm upload data when device both stationary and moving.)
	*checkoff* / *check*0*	End check function
Period Tracking	*periodlocate* XXXXXXXX**XXXXXXXX*	GPS location data will be uploaded to server at appointed periods, up to 3 time periods. Remark: Only TK05 TK10 Tk15 TK20 have this function.
	*periodlocateoff*	End period tracking function. Remark: Only TK05 TK10 Tk15 TK20 have this function.
Appointed Time Tracking	*timinglocatemap* XXXX*XXXX**XXXX*	Check map location at appointed time Remark: Only TK05 TK10 Tk15 TK20 have this function.
	*timinglocateoff*	End appointed time tracking function Remark: Only TK05 TK10 Tk15 TK20 have this function.
Upload Alert	*uploadalert*on*	All alerts will be uploaded to server
	*uploadalert*off*	End upload alert function
Online Control	*onlineon*	Enable online control function
	*onlineoff*	End online control function
Deep Sleep Setting	*sleep*1-99*	1-99 represents hours of deep sleep period.eg, *sleep*1*Remark: only portable trackers have "sleeping" function.
Period Motion Sleep	* sleepv*1-99*	Period Motion Sleep. 1-99 represents hours of deep sleep period. eg, *sleepv*1* Remark: only portable trackers have "sleeping" function.
Motion Sleep	* sleepv*	Motion Sleep function with motion alert.Remark: only portable trackers have "sleeping" function.
Sleep Off	*sleepoff*	End Deep Sleep function. Remark: only portable trackers have "sleeping" function.
Status query	*status*	Check system status
Multi Controller	*multiquery*	Enable multi controller function
	*multiqueryoff*	End multi controller function
Device Information	*about*	Software edition information and device’s serial number.

Install Photo

Fast Guide To Test Our GPS Tracker

Step 1. Get a active SIM card with both GSM SMS and GPRS data service.

Make sure the SIM card can send SMS and have GPRS function;

Step 2. Insert the SIM card, and make sure install the over properly.

Because only when you install the cover, then the screw will be fit strongly and the device will have power supply.

Step 3. Check Installation.

Call the tracker SIM card, and see whether its with signal. If it can ring, but wont pick up the phone, it means the SIM card is with signal, and you can go next.

Step 4. Set the APN.

Its very important. Eg, your APN is internet, and no login user and password, then you just need send :*APN*internet* (dont allow cap letter here!)(it will reply to you whenever the APN command is wrong or correct. However, only when you set the right APN, it can be combined with our web platform. Therefore, if you didnt get any reply, then please kindly check whether your SIM card is with active GPRS or GSM SMS service, or whether your sim card is fit well.

Step 5. Set the master number.

Its very important also. The right command is:*master*123456*+45XXXX*,eg, if you use your own mobile phone is 004511111111,thenthe master command will be: *master*123456*+4511111111*

Step 6. Login into web tracking platform.

After set the right apn and master number, then you can go to our web platform: www.miitown.com input the master number and password to login in.

Please pay attention, default password is 123456, user start with country code 00.Eg,00451111111,not +4511111111 .At this step, if you set APN correctly,then you could see your gps device location now.

AT the same time, you can send *locateaddress* and your phone will receive the detailed address include street name.

If you still have questions during testing, please don’t doubt to contact with us, we are on skype for fast assistance always: vjoycar
