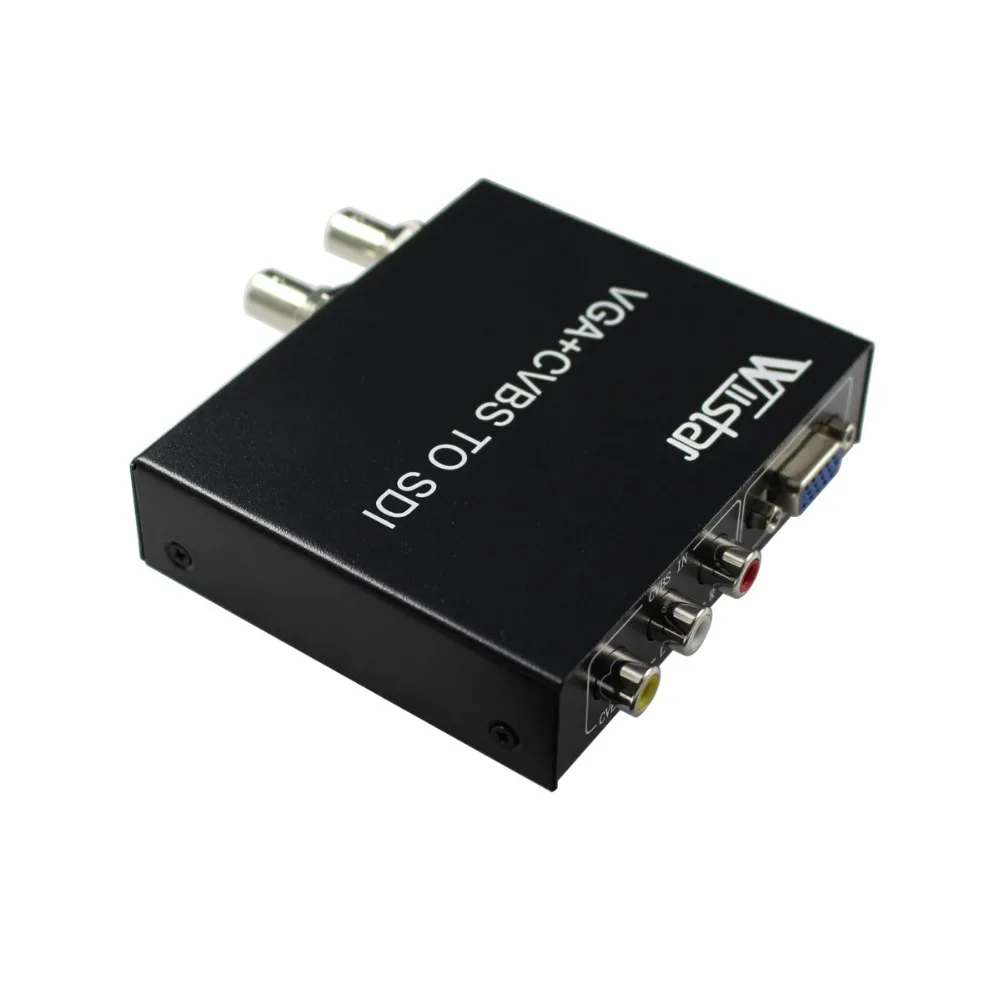

Terrific Promo wiistar Video Audio Port VGA CVBS to SDI SD-SDI HD-SDI 3G-SDI Converter Image Processor Remote Control 1080p


Remote Promo Sale Product provide cvbs to sdi, cvbs to vga, cvbs to vga converter Wonderful Discount wiistar Video Audio Port VGA CVBS to SDI SD-SDI HD-SDI 3G-SDI Converter Image Processor Remote Control 1080p. Get 13% discount Now! Now US $51.33/piece. Hurry buy Now before back to normal price! Normal price US $59.00. Dont waste your time. Buy Now only in wiistar Trusted Seller Store!

This product support VGA and AV signal input,it also support 2 ports of the SDI(SD-SDI/HD-SDI/3G-SDI) signal,support Full-HD SDI signal output,it also very easy to be use with high stability and reliability.It is widely used at all the TV station and other work place,safe security monitoring,training venue and so on.

I. Safety warning:

1.Please keep away from moisture,high temperature,dust,corrosive and oxidizing gas environment.

2.All the parts should avoid strong vibration,please don’t crash,knock,or break down.

3.Please hold on the head of the power adapter when you pull off the power adapter instead of pull the power cable.

4.Please turn off the power when the machine is not in use(please pull off the power adapter when you will not use it in a long time).

5.Please don’t open the products yourself and don’t touch the parts inside.

6.You should use the original power adapter which provide from the manufacturer or the reliable power adapter.

II Interface introduction and connection diagram

FORMAT & MODE Button Function Introduction

FORMAT

Output resolution selection

Press “FORMAT” key when the input signal is VGA,the SDI output resolution would be switched between 720p@60(16:9) and 1080p60(16:9)

Press “FORMAT” key when the input signal is CVBS,the SDI output resolution would be switched between 720@60(16:9) and 1080p25/30/50/60(16:9),or the SDI output resolution would be switched between 720p@60(4:3) and 1080p25/30/50/60(4:3).

MODE

I.Switch between CVBS and VGA

Keep press “MODE” key ≥ 2S

II.Switch SDI Video output screen between 16:9 and 4:3

Press “MODE” key(20ms to 2s),the video output screen would be switched between 16:9 and 4:3,and it is only available when the input signal is CVBS.

VGA+CVBS to SDI+ SDI

Interface type

Input port

1×SDI port(BNC)

1×VGA port

1×AV port

Output port

2×SDI ports BNC

Power

≤5W

Voltage

DC12V/1A

VGA input

640x480@60 1024x768@60, 1280x720@60,1280x768@60,

1280x1024@60, 1360x768@60, 1366x768@60, 1680x1050@60, 1920x1080@60

CVBS input

Resolution 576i 480p,576p

SDI output

Format

3G-SDI:SMPTE 424M

HD-SDI:SMPTE 292M

Transmission speed

2.970Gbit/s 1.485Gbit/s

Resolution

When the input signal is VGA,SDI resolution is:16:9 1080p 60 16:9

When the input signal is CVBS,SDI resolution is16:9 1080p 60 16:9

4:3 1080p 25/30/50/60 4:3

Transmission speed and resistance

3G-SDI:80m~100m(1694A Coaxial cable /75Ω

HD-SDI:150m~200m(1694A Coaxial cable/75Ω

SD-SDI:250m~300m(1694A Coaxial cable/75Ω

Theoretical value (it is also depends on the cable quality)

Protection

Contact discharge ±4KVAir discharge ±8KV

Dimension and Weight

Size 98×83×24(mm) Weight 230g

Package contents
