TX RX HDMI Extender with IR Remote over ethernet TCP IP by RJ45 Cat5 Cat5eCat6 HDMI Extender Splitter IR Transmitter Receiver

​!!! This product supports 1pcs of SENDER support maximum 253pcs of RECEIVER (over Swtich).

If you want to buy more Receivers, please add the (HSV891-IR RX) item to the buy box(Cart) first, and then add the right number of (HSV891-IR RX) items to the buy box(Cart) again.

Introduction

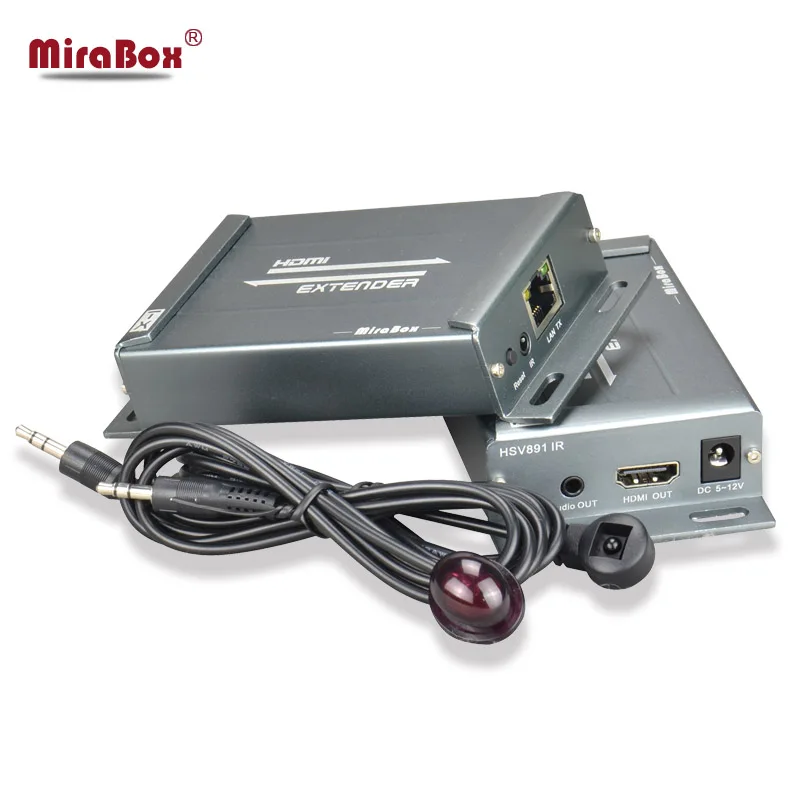

This product not only can work as other normal HDMI extender by CAT5/6 cable up to maxim 150 meters, but also can transmit HDMI data over local network. The data could be transmitted over switch, router and other ethernet device, and extend the transfer distance to over 20km. It also could work in broadcast mode, like HDMI splitter, broadcast HDMI signal from one sender to multiple receivers. HSV891IR supports sending IR remote control signal from receiver side to sender side which could be used to control HDMI source devices. HSV891IR also integrate HDMI audio extractor that could extract stereo audio out from HDMI signal and output via 3.5mm jacket. HSV891IR have many professional designs which suitable for various application scenario, especially for engineering project usage. Such as 5V-12V wide range power supply, mountable aluminum alloy shielding.

Features

1. Signal enhance technology ensure 150meters transfer distance over CAT6 cable for 1080P FULL HD. 2. Powerful processing capability keep lower video latency < 150ms. 3. Extend transmit distance to 20Km over cascaded ethernet switch/router. 4. Broadcast mode transmit HDMI signal from one source to multiple receivers. 5. Sending IR signal from receiver side to sender side. 6. Integrated HDMI audio extractor output HDMI audio. 7. Supports 5V-12V wide range power supply.

Specification

Power Supply: DC 5~12V/1AIR Frequency Range:20KHz~60KHzResolution Supported: 1080p@50Hz / 1080p@60Hz / 1080p@24Hz 1080i@50Hz / 1080i@60Hz720p@50Hz / 720p@60Hz /576i@50Hz / 480p@60HzWorking Temperature:-10°C ~ 60°CLink Connection:UTP/STP CAT5/5e/63.5mm Audio Output: 60mW THD<0.1% SNR 110dBPower Consumption:3W(max)eachWorking Mode: *Point to Point mode *Broadcast mode( Point to MultiPoint) *Cascade modeTransfer Distance: Point to Point Mode: CAT5 100meters CAT5e 120meters CAT6 150meters
Cascade Mode: 20Km maximumRelative Humidity :20% ~ 90% RH(Non-condensing)Dimensions :123x64x25mmWeight :110g each
