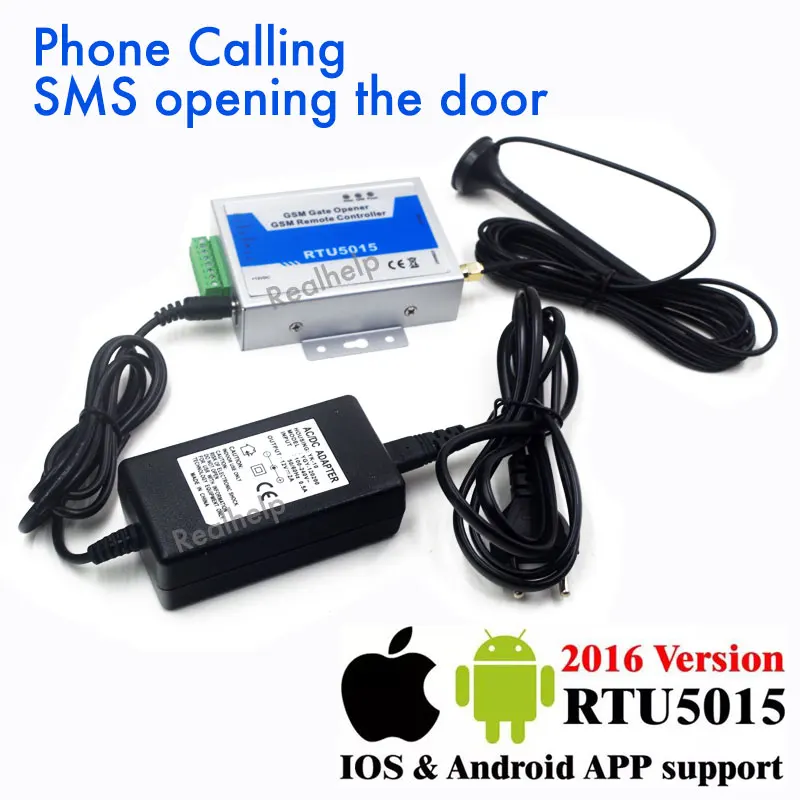

New Upgrade RTU5015 2G SIM GSM Gate Door Opener Operator with SMS Remote
Control Home Aalrm Barrier Opener
I.Introduction
The GSM Gate Opener RTU5015 is a very simple device which can be used for authorized door access,controlling Gates,switching of remote equipments,car packing systems,Actually the GSM Gate Opener RTU5051 can be used in Places which require to turn ON/OFF your system,machines,equipments remotely with a FREE call from your mobile phone.
Just dial from Authorized user number then the barrier and doors are opened,or the machine are turn on or off by the GSM Gate Opener,There are no call costs,The GMS Gate Opener rejects the call from authorized number then carry out the turn on//OFF action.
II.Description
This device not support 3G SIM Card,
GMS Cage,Barrier,Shutter,Garage Door and Door Opener
Open gate or garage door with a FREE call from your mobile Phone!
Remote Switching machines with a FREE call from your mobile Phone
III.Features
1.New upgrade,enhance system stability and increasing responsiveness
2.NO call charges,the GSM gate Access Controller rejects the call from authorized number then carry out the turn on the action on the first ring.
3.Multiple applications,(Gates,Bollards,Barriers,garage doors,shutters and access doors or machines)
4.Secure-using caller ID for identification,unknown caller are ignored.
5.Can be operated from anywhere,no distance limit
6.Add or remove users by SMS Text command.
7.NO need to provide a remote control for different users.
8.Up to 999 authorized phone numbers can be configured
9.Two digital inputs for door sensor,motion sensors or other sensors to protect your door and windows,when any one of them triggered,will send SMS alert message you immediately.
10.One output with relay rating 3A/240VAC for connecting the switch the door or machines.
11.The relay action will return a SMS confirmation to the owner,this function is editable by user.
12.supply by both IOS and android APP
IV.Specification
DC Power supply | DC12V/2A |
Plug | EU,AU,UK,US,Please Choose the most suitable Plug |
Power consumption | 12V input (50mA) |
Frequency range | Dual band 900/1800 MHz or 850/1900Mhz |
SIM Card | Supporting 3V SIM Card |
Antenna | 50 Ω SMA Antenna interface |
Temperature range | -20-+60 °C |
Humidity range | Relative humidity 90% (condensation free) |
Relay Rating | 3A/240VAC |
Exterior dimension | 110mm*90mm*40mm |
Net Weight | 600 g |
V.Interface Instruction
Relay | Relay Status, calling in, the relay will work, this LED Indicator will on. When the wired sensor triggered, the LED indicator will on, Otherwise, is off. |
GSM | When insert the SIMcard into the Solt, will flash per0.5S with red color; When registered GSM Network successful, will flash per 0.5S with Yellow color. When calling in, the relay works, will flash per 0.5S with red and yellow color. |
Power | External 12VDC Power LED indicator |
O1 + | Output 1+, the relay rating is 3A/240VAC,connect to the switch of the lock or devices. |
O1 - | Output 1 -, the relay rating is 3A/240VAC, connect to the switch of the lock or devices. |
Siren+ | Siren connector, connect to the Siren Positive |
NA | If need the siren start when the sensor triggered, must connect this connector with 12VDC connector. If not use the siren, then needn’t connect it. |
12VDC | Connect to the NA Point, when sensor triggered, will start the siren for 90Seconds. Also, it can be connected to wired sensor to supply 12VDC power for sensors if need. |
___ __ _ | Common, connect to Siren Negative, another wire of the two wired sensors |
IN1+ | Digital input 1+, connect to one wire of the first wired sensor. |
N2+ | Digital input 2+, connect to one wire of the second wired sensor. |
+12VDC | The external power input. 12VDC,1A. |
VI.What applications does the GSM Gate Opener RTU5015 suitable for ?
Hone and garage owners
Business companies
Hotels
Warehouse
Packing Places
Hospitals
Other place need remote switching applications
Simple security Alarm systems applications
VII.Connect diagram
1pcs RTU5015 GSM gate opener controller
1pcs Magnetic mount GSM antenna
1Pcs power adapter(DC12V/2A)
