Remote Promo Sale Product provide uav for agriculture, agriculture drone, drone agriculture 2018 Discount 8-axis 10KG Agricultural protection Drone multi-axis Agricultural protection UAV For Sprinkle pesticides. Get 5% discount Now! Now US $3419.05/piece. Hurry buy Now before back to normal price! Normal price US $3599.00. Dont waste your time. Buy Now only in TYIModel Store Trusted Seller Store!

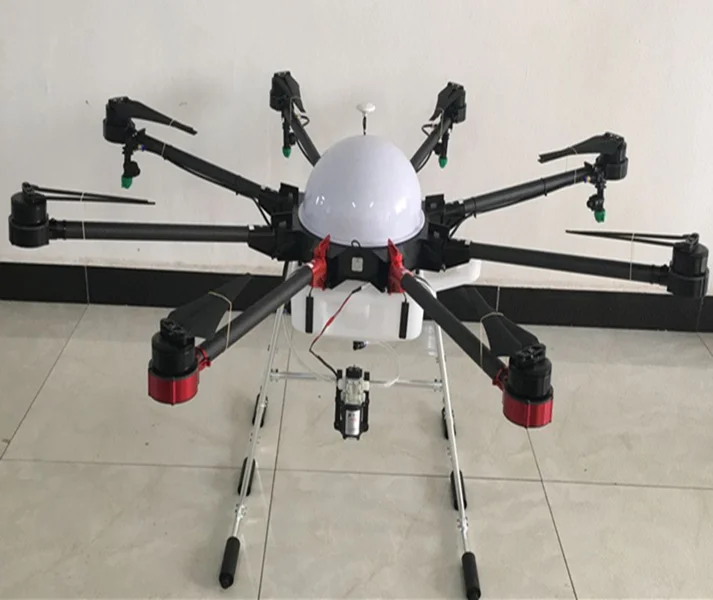

8-axis 10KG Agricultural protection Drone multi-axis Agricultural
protection UAV For Sprinkle pesticides
RTF includes:
8 - axis UAV frame * 1,
10l spray system * 1,
6215 brushless motor * 8,
6 - 14s 80a ESC * 8,
DJI 2170 propeller * 8,
datalink 3 remote control * 1,
DJI n3 - ag flight controller * 1,
1080 w dual 20a charger * 1,
12S 12000MAH 25C lithium battery provided by DJI supplier * 1,
service tool, bb ring
| Product number | TYI8-10 | Product name | 8 axis 10KG |
| Folding Aircraft Dimensions | 820mm*600mm*750mm | Product wheelbase | 1.48m |
| Full takeoff weight | 24.2KG | Maximum take - off weight | 30KG |
| No - load take - off weight | 14.2KG | load | 10KG |
| No load Dead time | 15min | Working time | 10min |
| Charging time | 30min | Out of water | 1.25L/min |
| Spray time | 8min | Spray width | 4m |
| Maximum flight speed | 10m/s | Operational flight speed | 4-6m/s |
| Flight mode intelligent control function: GPS function, attitude mode, manual mode, a key takeoff, a key landing, fixed-point high, out of control return, heading lock and other functions | |||
| Technical indicators | |||
| physical dimension | |||
| Flight size 8-axis | 8-axis wheelbase 1480mm | ||
| Transportation State Size | 700*700*650mm | ||
| the plane weight (with battery) | 14.2KG | ||
| Propeller | 2255 | ||
| Dynamic parameters | |||
| Motor | type | 6215 | |
| KV | 170 | ||
| Maximum pulling force | 8.9KG | ||
| ESC | voltage | 44.4V | |
| Maximum operating current | 100A | ||
| Flight parameters | |||
| Operating speed | 4-6m/s | ||
| Maximum flight speed | 10m/s | ||
| Maximum load | 16KG | ||
| Payload | 10KG | ||
| Full takeoff weight | 24.2KG | ||
| Full load hover time | 8min | ||
| No-load life time | 25min | ||
| Maximum wind resistance | 6winds | ||
| Battery | 6S 16000MAH | ||
| Operating temperature | 0-40℃ | ||
| Spraying system | |||
| spray tank capacity | 10.5KG | ||
| Water pump | diaphragm pump | ||
| Spray wide | 4-6m | ||
| Spray type | fan pressure nozzle | ||
| Number of nozzles | 2 | ||
| Spray flow | 1-2L / min adjustable flow rate | ||
| Control System | |||
| Remote control distance | <=2000m | ||
| Transmission frequency | 2.4G | ||
| Control interface | Flat-panel touch-screen computer | ||
8 axis 10kg agricultural drone size: | Size: 1500 * 1500 * 750 (no propeller) Size: 750 * 750 * 650mm Uav package size: 850 * 850 * 750mm Center carbon fiber board size: 450 * 450mm 3K Upper center carbon fiber board thickness: 2.0 mm Lower center carbon fiber board thickness: 2.5 mm Carbon fiber pipe size: 28 * 30mm 3K Uav overall height: 700mm Landing gear material: 6061 alumina Landing gear bearing weight: 100kg | ||
Do not include the phone in the remote control picture
Do not include the white cover in the drone image below
The positioning accuracy is 1 meter to you
8-axis 10KG Agricultural protection Drone multi-axis Agricultural protection UAV For Sprinkle pesticides
8-axis 10KG Agricultural protection Drone multi-axis Agricultural protection UAV For Sprinkle pesticides
8-axis 10KG Agricultural protection Drone multi-axis Agricultural protection UAV For Sprinkle pesticide
