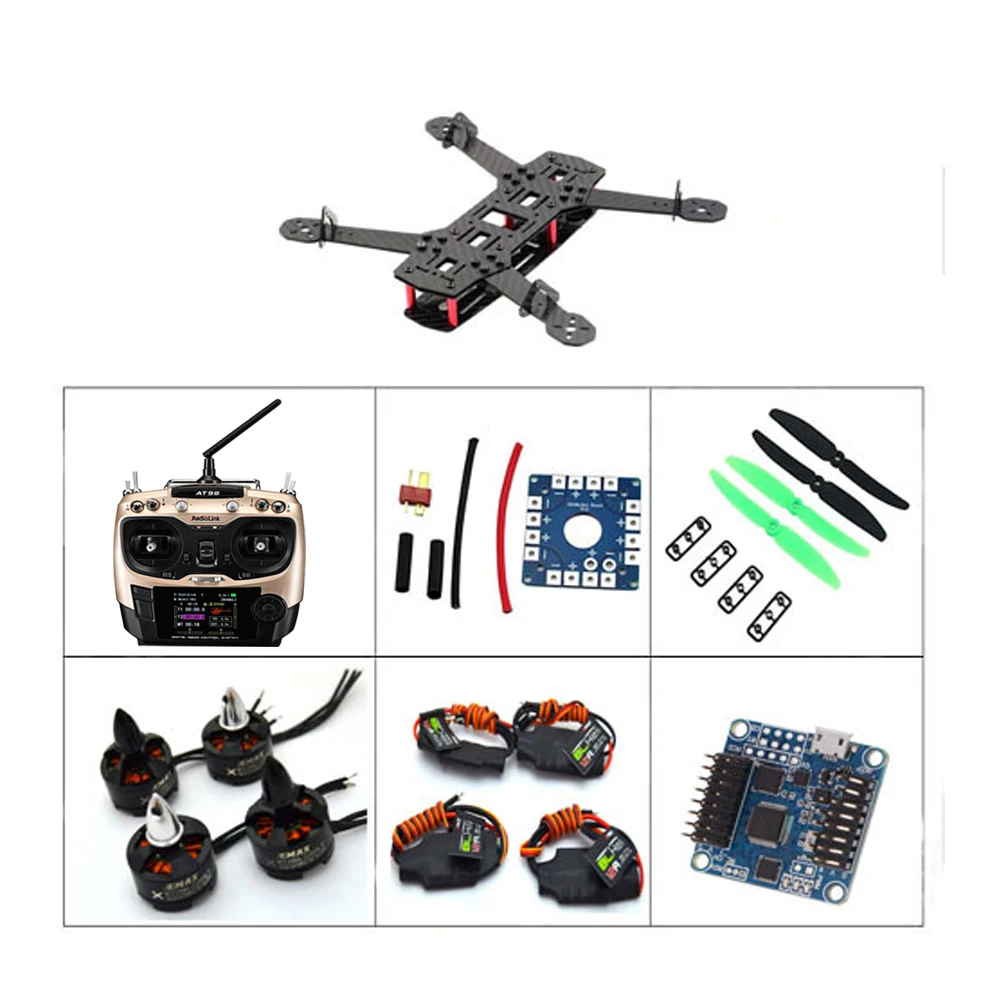

Qav250 Mini Carbon Fiber R/c 1806 2400kv Motor EMAX 12a BLHELI ESC FLIP32+ 10DOF Flight Controller Combo

QAV250 Frame Kit
Item Name: QAV250 Carbon Fiber
Size: 250mm diagonally, 175mm wide, 130mm long motor-to-motor;
Maximum Propeller: 5"(Suggest 5030 propeller)
Motor Mount: M2 12mm - 16mm (Tiger MN1806 2300kv, RCX 1804 2400kv), M3 19mm (Tiger MT2206 2000kv, Sunnysky X2204 2300kv)
Flight Controller Mount: 30.5mm x 30.5mm
Board Camera Mount: 32mm x 32mm

EMAX MT1806 Motor:

No. of cell: 2 - 3S
Framework: 12N14P
Shaft: 2mm
Diameter: 26.7mm
Length: 23mm
Propeller: 5 - 6 inch
Weight: 18G

12A BLHELI ESC Specification:

Continuous current: 12A
Burst current: 15A
Lixx battery: 2-4S
Dimension: 42*20*8mm
BEC output: 1A/5V
Weight: 11g wires included
Programmable

Features:

1. Suit for all airplane including helicopter 8 swash plate models, fixed wing 2 airfoils 3 rears, gliders 4 airfoils 2 rears and aircraft.
2. It takes 3ms only for 9 CH to response parallel, less that the average time 20ms.
3. DSSS spread spectrum mode supplies better performance in anti-interference
4. Adopt two-transmission technology of RadioLink AT10 10CH Radio Control, support signal strength, receiver voltage monitored, and extending battery voltage, temperature, motor RPM, GPS etc.
5. 4096 section precision, 0.25us per section, servo anti-shake rudder
6. 2.8 inch 16 colors LCD resolution 240×320 distinct and magnificent
7. Support USB online upgrade, Vibration alarm
Package includes:
1 x BW® RadioLink AT9 9CH Transmitter (Mode 2)
1 x 9CH Receiver R9D
1 x English user manual

Specification:
1. Channel: 9 channels, 5-9 channels are customizable
2. Frequency: 2.4GHz ISM band (2400MHz to 2485MHZ)
3. Modulation mode: QPSK
4. Channel bandwidth: 5.0MHz
5. Spread spectrum: DSSS
6. Adjacent channel rejection: 38dbm
7. Transmitter power: 100mW(PCB testing), 20dbm(3 meter air testing)
8. Operating Current: 105mA
9. Operating Voltage: 7.4~15V
10. Control distance: more than 900 meters ground, 1.5kms air
11. Required to Operate: 2S-4S Lithium battery(Not included)
12. Compatible model: Include all 120 degree and 90 degree swashplate helicopter , all fix wing and glider, five flying model and aircraft.
13. Size: 183 x 193 x 100mm, Weight: 0.88Kg
Description:
Item Name: Flip32 Flight Controller
Size: 36mm x 36mm
Version: 10dof

Features:
3-axis MEMS gyro+accelerometer(MPU6050)
3-axis magenetometer (HMC5883L)
Pressure sensor (MS5611)
Flexible motor output,support various airframe types
Quad/Hexa/Tri/Bi/Y4/Y6/Octo/Camera Gimbal(Default is Quad-X)
Up to 8 ch RC input-supports standrad receivers(PWM),PPM Sum receiver(FrSky,etc),or Spektrum Stellite receiver
Battery voltage monitoring
Modern 32 processor running at3.3V/72MHz(STM32F103CB)
Onboard MicroUSB for setup and configuration
MultiWii-based configuration software for easy set up
reV4 hardware

Note: This version included (HMC5883L) and (MS5611) sensors.

Flip32 using the same GUI as Multiwii 2.3
