Fantastic Special fpvQuadcopter 210mm Carbon Fiber Mini drone Frame F3 Flight controller 2206 1900kv motor 4050 Props rc quadcopter with camera


Remote Promo Sale Product provide quadcopter with camera, f3 flight controller, flight controller 2018 Gift fpvQuadcopter 210mm Carbon Fiber Mini drone Frame F3 Flight controller 2206 1900kv motor 4050 Props rc quadcopter with camera. Get 7% discount Now! Now US $89.27/piece. Hurry buy Now before back to normal price! Normal price US $95.99. Dont waste your time. Buy Now only in Lighting Hobby Store Trusted Seller Store!

start

US $88.19 US $83.33 US $85.35 US $80.99 US $68.39 US $95.99 US $93.27 US $83.33 US $85.35 US $95.99

end

The210mm Mini FPV Quadcopter

The 210mm Carbon Fiber FPV Quadcopter airframe is smallest FPV quad kit to date. It is designed around 4" props and 2206 size motors with 1900kv and up.

Features:

  • Full 3K Carbon Fiber Frame
  • Multiple motor mounting holes to fit a variety of motors (M3 and M2 screw mounting patterns).
  • "Bumpers" on the end of the arms to protect the motor during a crash, just like the QAV250.
  • Easy Lipo Access (suggested Lipo is a 1000mah 3s)
  • Support for 32mm board cams as well as 26mm cams in cases. (not included )
  • Support to carry HD camera (such as the GoPro 4, Mobius, or GoPro Session) with optional camera vibration mount (not included)

Weight

  • Frame: 92.5g
SP Racing F3 SPR F3 Flight Controller Board Cleanflight 6DOF 10DOF Arco with Protective Case for FPV Racing 1Quadcopter Frame Better than Naze32 Flip32 RV5 6 DOF&CC3D

Standard Version: Standard model for racing/ acro flying
Deluxe Version: Additional sensors for altitude and direction

Better coding practices and introducing tests, easier to maintain and for future development. (Dominic has software development background)
Many bugs fixed from Baseflight
Supports more flight controllers, including CC3D, CJMCU and Sparky
Supports OneShot ESC and more than 8 RC channels
Product Description
Cleanflight is Open-Source flight controller software which is 32-bit version of the original 8-bit MultiWii code. Features
Better coding practices and introducing tests, easier to maintain and for future development. (Dominic has software development background)
Many bugs fixed from Baseflight.
Supports more flight controllers, including CC3D, CJMCU and Sparky.
Supports OneShot ESC and more than 8 RC channels.
Additional PID controllers that uses floating point arithmetic operations. (now has 3 built-in PID Controllers)
Many more features such as RGB LED strip support, Autotune, In-flight PID tuning with your radio, blackbox flight data logging etc.
Specification The hardware was designed by the lead developer of Cleanflight to be more capable than the previous-generation STM32F1-based boards after hearing feedback from the Cleanflight users, contributors and top-pilots.
-36x36mm board with 30.5mm mounting holes
-Weight ~6 grams
-STM32F303 CPU, 72Mhz inc FPU
-High-Capacity Flash (Acro and Deluxe)
-MPU6050 accelerometer/gyro
-MS5611 barometer (Deluxe only)
-HMC5883 compass (Deluxe only) -MicroUSB socket -2x 8pin JST-SH sockets (PPM, PWM, SERIAL RX, GPIO, ADC, 3V, 5V, GND)
-8x 3pin though-holes for pin headers for ESC/Servo connections
-2x 4pin though-holes for pin headers for 2x serial ports
-1x 2pin though-holes for pin headers for battery voltage
-1x 2pin though-holes for pin headers for buzzer
-1x 4pin JST-SH socket for I2C
-1x 4pin JST-SH socket for SWD debugging
Package include:
1 pcs SP Pro Racing F3 Flight Controller with Brano and Compass& cables& protective case Features: Flexible motor outputs, support various airframe types: Quad/Hexa/Tri/Bi/Y4/Y6/Octo/Camera Gimbal. (Default is Quad-X) Up to 8 ch RC input - supports standard receivers (PWM), PPM Sum receiver (FrSky, etc), or Spektrum satellite receivers. Built in FrSky telemetry inverter (shared w/main port) Battery voltage monitoring Modern 32-bit processor running at 3.3V/72MHz (STM32F103CB). Onboard MicroUSB for setup and configuration LEDs so bright, they could blind you MultiWii-based configuration software for easy setup rev5 hardware Specs: 36x36 mm (30.5mm Mounting) 5.3 grams (no headers, 7.3 grams with) 2000 degrees/second 3-axis MEMS gyro Input voltage: Max 16V on input rail and up to 35V 6s on the voltage sense line

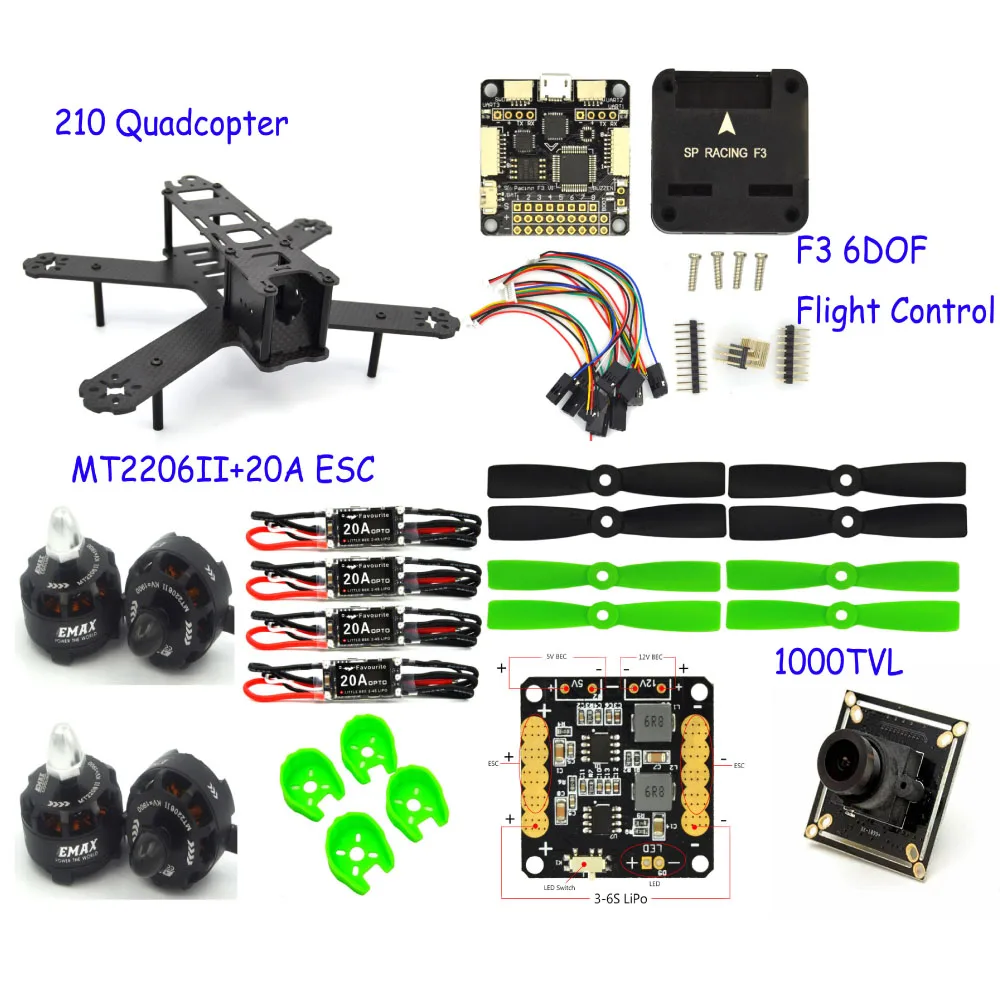

Package Includes:(as the main picture)

- 1pcs 210mm 4-Axis Carbon Fiber Quadcopter Frame Kit (not assembeled, just a frame kit)
- 1pcs F3 6DOF Flight Control Board
- 4pcs Littlebee20A
- 4 pcs emax MT2206II (2CCW, 2 CW)
- 1pcs CC3D distribution board
-1 PCS 1000TVL Camera
- 4pcs motor colver
- 2pcs red LED and 2pcs green LED
- 4 pairs 4050 propellers (2 pair green , 2 pair black)
