Pixhawk PX4 2.4.8 32 bit ARM Flight Controller &4G Card/Led/PPM/I2C/433/Micro SD

Description: PX4 Pixhawk V2.4.8 32Bits Open Source Flight Controller w/External LED for RC Airplanes
Improvements on V2.4.6 - V2.4.8 PCB board - Redeveloped and optimized circuit without changing components - Could use Official MissionPlanner, ECLIPSE firmware upgrade

specifications:
32-bit Pixhawk PX4 Autopilot Open Code Flight Controller V2.4.8 W / Doorbell Safety Switch
processor
2 bit 1.32 STM32F427 flash Cortex M4, with the floating point hardware processing unit
2 main frequency: 256 K, RAM 168 MHZ
3.32-bit processor STM32F103 backup co

sensor
1. L3GD20 3-axis 16-bit digital gyroscope
2. LSM303D 14/3 Axis Accelerometer Magnetometer
3. MPU6000 6-axis accelerometer / magnetometer
4. MS5611 high precision barometer

Interface
1.5 UART 1 High Voltage compatible, 2 with hardware flow control
2.2 CAN
DSM / DSM-X 3. Spektrum compatible satellite receiver input
SBUS 4. Futaba input and output compatible
5. PPM signal input
6. RSSI (PWM or input voltage)
7. I2C
8. SPI
9.3.3 and 6.6 VADC inputs
10 external US MICRO
Power System and Protection - Ideal diode controller with automatic failover - Servo rail high-power (max. 10V) and high-current (10A+) ready - All peripheral outputs over-current protected, all inputs ESD protected

3DR Telemetry Kit Specifications

- Very small size

- Light weight (under 4 grams without antenna)
- 433MHz
- Receiver sensitivity to -121 dBm
- Transmit power up to 20dBm (100mW)
- Transparent serial link
- Air data rates up to 250kbps
- MAVLink protocol framing and status reporting
- Frequency hopping spread spectrum (FHSS)
- Adaptive time division multiplexing (TDM)
- Support for LBT and AFA
- Configurable duty cycle
- Built in error correcting code (can correct up to 25% data bit errors)
- Demonstrated range of several kilometers with a small omni antenna
- Can be used with a bi-directional amplifier for even more range
- Open source firmware
- AT commands for radio configuration
- RT commands for remote radio configuration
- Adaptive flow control when used with APM
- Based on HM-TRP radio modules, with Si1000 8051 micro-controller and Si4432 radio module

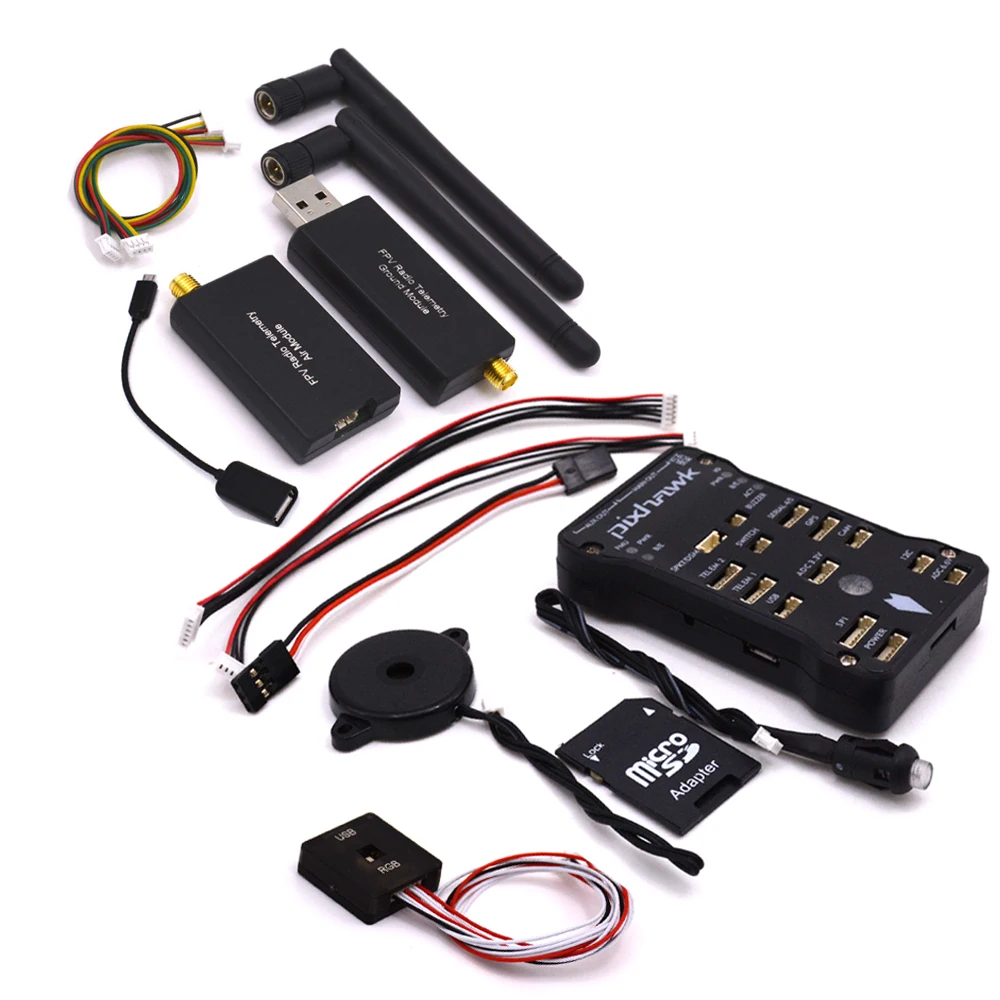

Package Included: - PX4 V2.4.8 Flight control board - safety switch - Buzzer - Original Case- External LED light board (with USB function) x1 - Pixhawk-I2C Splitter Expand Module X 1pcs - PPM module x1 - 433 telemetry x 1(two kinds of telemetry, send it at random) - Micro SD Card Adapterx1
