Wonderful Sale Carbon Fiber Mini QAV250 C250 280 Quadcopter EMAX 1806 Motor and simonk12A Esc Flight Control Prop FPV

Remote Promo Sale Product provide props halloween, props costumes, prop shaft Cool Promotion Carbon Fiber Mini QAV250 C250 280 Quadcopter EMAX 1806 Motor and simonk12A Esc Flight Control Prop FPV. Get 7% discount Now! Now US $75.69/piece. Hurry buy Now before back to normal price! Normal price US $81.39. Dont waste your time. Buy Now only in Flying Angel store Trusted Seller Store!
New 280 Features:Main material:100% pure carbon fiberWheelbase: 280mmWith rubber damper to decrease vibration during flightAluminum alloy spacer, light weight, reliable New 280 Quadcopter Combo Specifications:Wheelbase: 280mmHeight: 70mmWeight: 125gMT1806 2280kv Brushless MotorSpecification:

- KV: 2280
- Max Trust: 460g
- No. of cell: 2-3S
- Framework: 12N14P
- Propeller: 5" ~ 6"
- Length: 26.7mm
- Shaft: 2mm
- Diameter: 23mm
- Weight: 18g

12A Simonk ESC Specifications:

- Max continuous load: ~11 amps- Burst Current: 16A/10sec- BEC: 5v/1amp max- Lipo Cells: 2 to 3 cells- Cables are fitted with female 2mm bullet connectors- Weight: 10g- Dimensions: 24mm L x 18mm W x 7mm H (29mm in length including capacitor)- 15cm signal wire / 5v power- 5cm motor wires (including 2mm bullet connector)mini kk2.15 Flight Controller

The next evolution of the rotor revolution is here!! The KK-mini is packing all the same power, but with a new mighty-mini form factor.

The KK-Mini is the next Big/Small evolution of the first generation KK flight control boards. The KK-Mini is based on the KK2.1.5 architecture and has all the same inputs and outputs as well as the full functionality of its big brother. The new 36mm designed was adapted to fit the needs of the new mini market, but dont let its size fool you as its just as much at home in any size multi-rotor. The KK mini still utilizes a built in GUI using a hi-res mini LCD and 4 micro buttons for the same great KK experience. It was engineered from the ground up to bring multi-rotor flight to everyone, not just the experts.

A host of multi-rotor craft types are pre-installed, simply select your craft type, check motor layout/propeller direction, calibrate your ESCs and radio and youre ready to go! All of which is done with easy to follow on screen prompts!

The original KK gyro system has been updated to an incredibly sensitive 6050 MPU system, making this the most stable KK board ever and allowing for the addition of an auto-level function. At the heart of the KK-Mini is an Atmel Mega644PA 8-bit AVR RISC-based microcontroller with 64k of memory. An additional polarity protected header has been added for voltage detection, so no need for on-board soldering. A handy piezo buzzer is also included for audio warning when activating and deactivating the board.

The KK-Mini added polarity protection to the voltage sense header and on-board buzzer. The voltage sense line has been updated for better accuracy.

If youre new to multi-rotor flight or have been unsure about how to setup a KK board, then the KK-Mini was built for you. The 6 Pin USBasp AVR programming interface ensures future software updates will be quick and easy.

Size: 36x36x11.5mm (mounting holes 30.5x30.5mm)
Weight: 8.6g
IC: Atmega644 PA
Gyro/Acc: 6050MPU InvenSense Inc.
Auto-level: Yes
Input Voltage: 4.8-6.0V
AVR interface: standard 6 pin.
Signal from Receiver: 1520us (5 channels)
Signal to ESC: 1520us
LCD size: 24*18mm
Mini buttons size:Four 3.3*4.2mm
Voltage sensor: One red positive pin header for.
Input rail: Single row 2.54mm pitch pin header for input signal

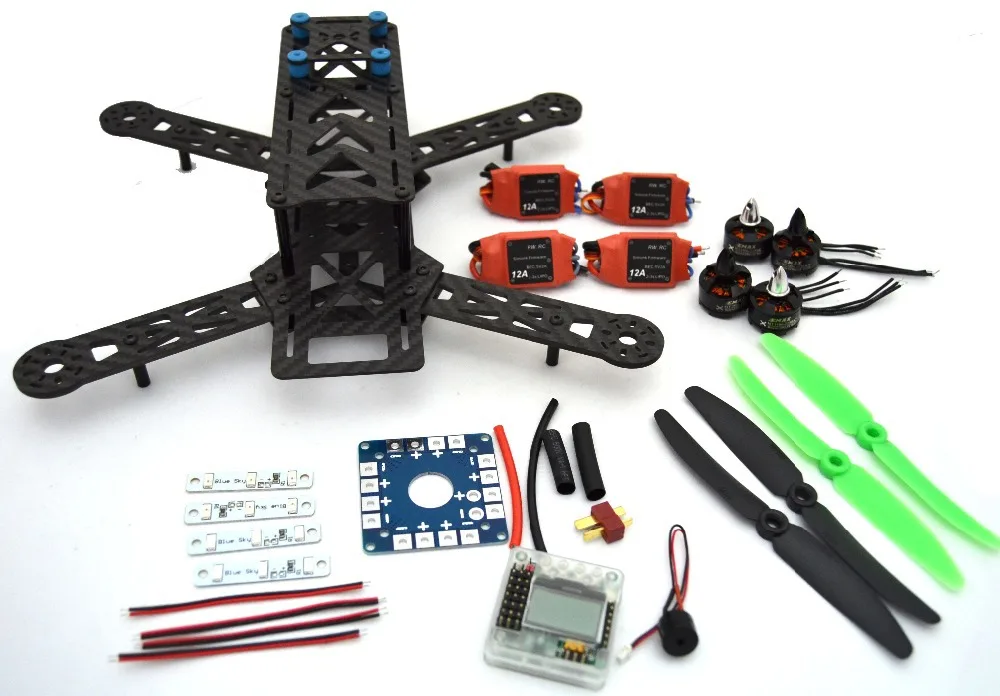

- Mini 280 FPV Quadcopter Frame x1
- ESC Connection Board x1
- MT1806 2280kv Brushless Motor x4
- 12A Simonk ESC x4
- 5030 Propeller CW&CCW x4
-kk2.15 Flight Controller

-LED Decoration Board x4pcs(2pcs red and 2pcs Blue
