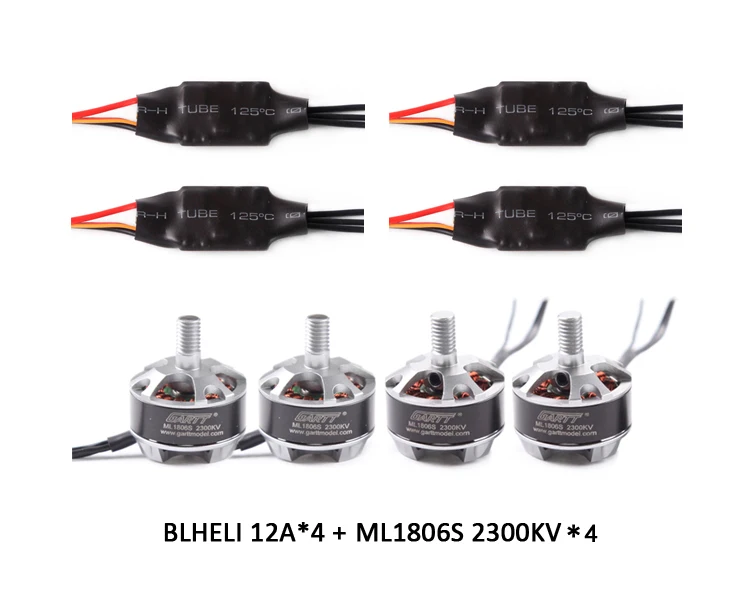

4 PCS ML1806S 2300KV motor + 4 PCS BLHELI 12A Brushless ESC For FPV QAV 250 Quadcopter
When using the screws we provided, pay attention to that if the thickness of the mounting plate of the motor is too thin, it may cause the screws too long and push up to the motor coil
Specifications:
ML1806S 2300KV motor:
Motor KV: 2300KV RPM/V
Motor Resistance (RM): 0.1868 Ω
Idle Current (Io/10V): 0.5A/10V
Max Continuous Current: 12A
Max Continuous Power: 130W
Weight: ≈19g/0.67oz
Lipo Cell: 2-3S
Motor Diameter: 23mm/0.9in
Motor Body Length: 18.5mm/0.73in
No. of Stator Arms: 12
Pole Count 14
Overall Shaft Length: 23mm/0.91in
Shaft Diameter: 2.0mm/0.079in
Bolt holes spacing: 12mm/16mm/0.47in/0.63in
Bolt thread: M2×4
Maximum thrust :480g
BLHELI 12A ESC :
- Continuous Current: 12A
- Burst current (10S): 15A
- Li-xx Battery (cell): 2-3
- Dimension (L*W*H): 25mm x 20mm x 7mm
- Weight wires Included: 9
- BEC Mode: Linear
- BEC Output: 1A/5V
- Programmable: Yes
Package include:
BLHELI 12A ESC *4ML1806S 2300KV motor CW * 2ML1806S 2300KV motor CCW * 2Return Policy
