Wonderful Offers DIY RC FPV Drone Kit 4-axis Quadcopter with F450 450 Frame PIXHAWK PXI PX4 Flight Control 920KV Motor GPS AT9S Transmitter RX

Remote Promo Sale Product provide fpv rc, drone quadcopter f450, kit diy drone Big Promo DIY RC FPV Drone Kit 4-axis Quadcopter with F450 450 Frame PIXHAWK PXI PX4 Flight Control 920KV Motor GPS AT9S Transmitter RX. Get 9% discount Now! Now US $322.33/piece. Hurry buy Now before back to normal price! Normal price US $354.21. Dont waste your time. Buy Now only in TrustWorthy INT'L Holding Group Trusted Seller Store!

Best Upgrade !!! AT9 Upgrade to AT9S Transmitter !!!!

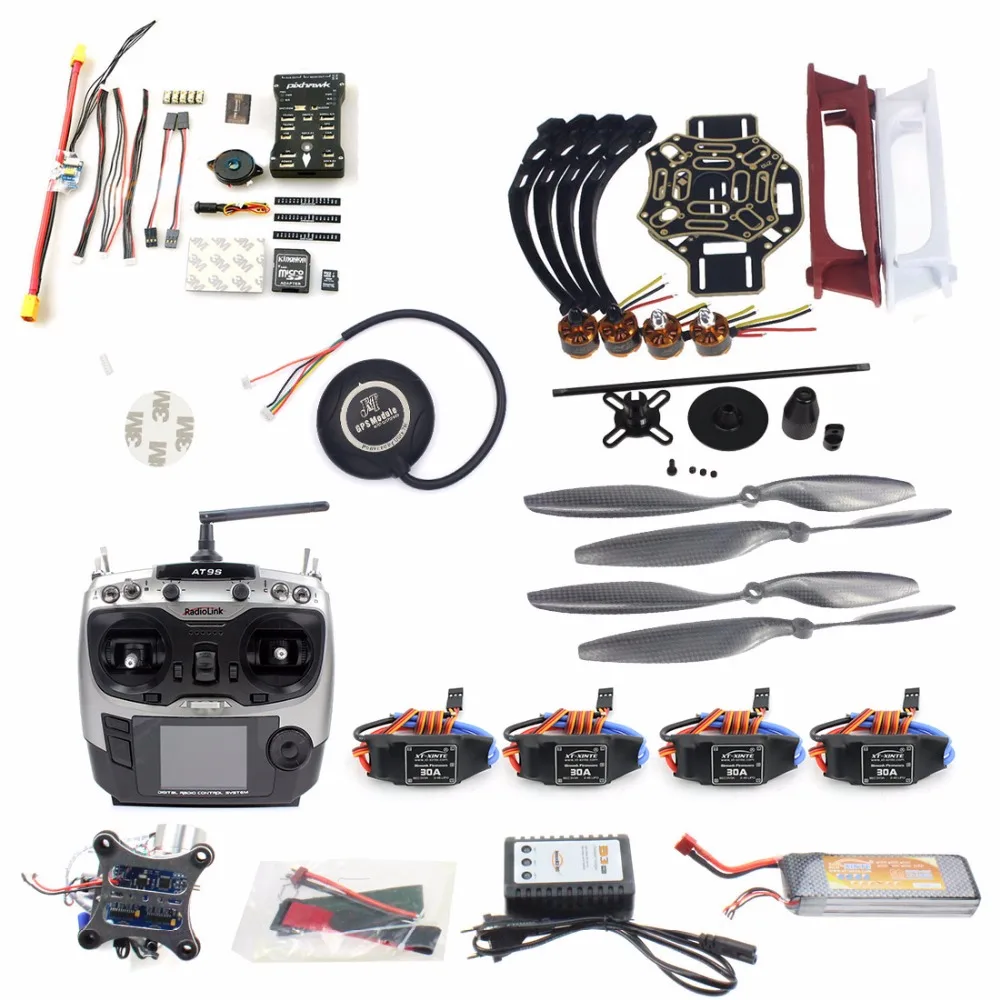

Package including:

1 HJ 450 Multicopter 450F nylon Fiber Frame Airframe kit Strong Smooth RC KK MK MWC DIY Quadcopter plane

2 Pair JMT 920KV CW CCW Brushless Motor

4 pcs 30A Brushless ESC Speed Controller

2 pair 1045 Carbon Fiber Propeller

1 pcs PIXHAWK PIX PXI PX4 Flight Controller

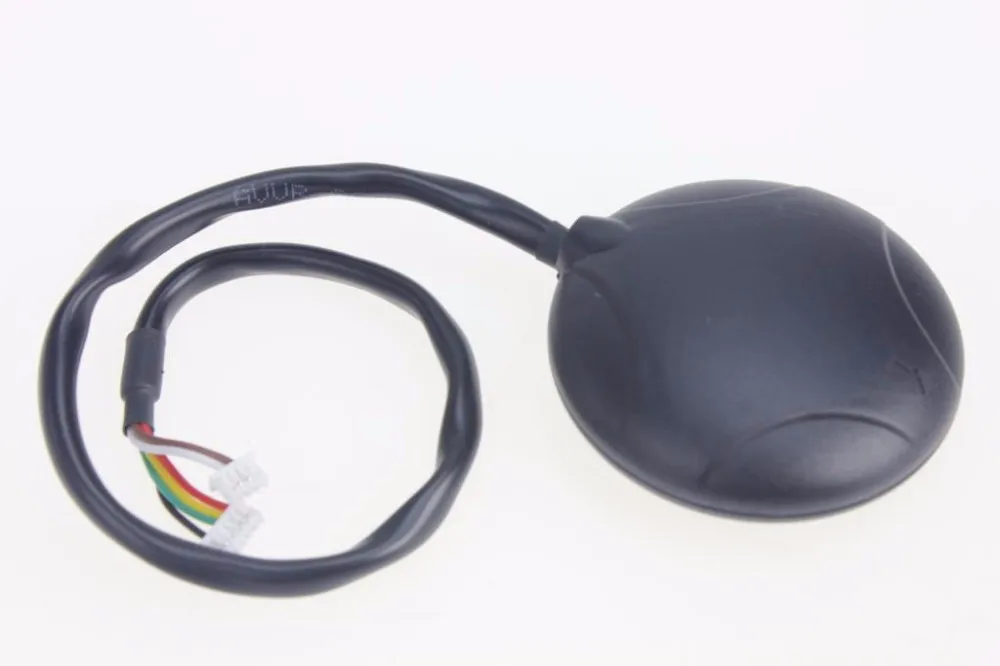

1 pcs 6M GPS with Compass L5883 25cm Cable

1 pcs Radiolink AT9S 2.4GHz 9 Channel Transmitter Radio &

Receiver TX &RX

1 pcs DJI GPS Folding Antenna Mount Holder Metal

12 pcs 3.5mm Bullet Connector ( banana plug )

1 pcs Hook & Loop Fastening Tape

1 pcs T Plug Male Connector

1 pcs IMAX RC B3 Pro Compact Balance Charger

4 PCS Black 140MM High Landing Gear Skid Wheels Tripod

1 pcs 11.1V 4400MAH 30C 3S1P battery

1 pcs Aluminum 2-axle Gimbal Camera Mount PTZ Steady with Brushless Motor Controller

Specifications:

GPS Hardware processor

1.32 2 MB flash STM32F427 Cortex M4, with hardware floating-point processing unit
2. frequency: 168MHZ, 256K RAM
3.32 STM32F103 backup coprocessor
sensor
1.L3GD20 3-axis digital gyroscope 16
2.LSM303D 3-axis accelerometer 14 / Magnetometer
3.MPU6000 6-axis accelerometer / magnetometer
4.MS5611 precision barometer
interface
1.5 high voltage compatible UART 1, 2 with hardware flow control
2.2 CAN
3. DSM / DSM2 / DSM-X satellite receiver compatible input
4.Futaba SBUS compatible inputs and outputs
5.PPM Signal Input
6.RSSI (PWM or voltage) Input
7.I2C
8.SPI
9.3.3 and 6.6VADC input
10. External MICRO USB Interface

Radiolink AT9S Transmitter :

AT9S Specification
1. Size: AT9S- 183*100*193mm, R9DS- 41*23*14mm
2. Weight: 0.88kg
3. Frequency: 2.4GHz ISM band (2400MHz to 2483.5MHz)
4. Modulation mode: QPSK
5. Channel bandwidth: 5.0 MHz & 250Kbps
6. Spread spectrum: DSSS ;FHSS
7. Adjacent channel rejection: >38dbm
8. Transmitter power: <100mW (20dbm )
9. Operating current: <90mA 12V
10. Operating voltage: 7.4 ~ 18.0V
11. Control distance: more than 900 meters ground, 1500 meters air, the actual control distance depends on the flying environment
12. Channel: 10 channels, 5-10 channels are customized
13. Compatible model: include all 120 degree and 90 degree swash-plate helicopter, all fix wings, glider and multi-rotor
14. Simulator mode: under the simulator mode the transmitter action turn off, change to power saving mode
15. Screen: 2.8 inches 16 colorful screen, 240*320 pixels
16. Support receivers: sells with R9DS (SBUS;PWM) ;Also support R10DS(SBUS PWM) and R6DS(SBUS;PPM;PWM)

R9DS 2.4G 9CH DSSS Receiver
Feature:
DSSS technique, super anti-interference.
RX voltage and signal strength telemetry, extensional sensor for EP, Temperature, RPM, GPS etc.
S.BUS. CH9 is set for S.BUS.
All 9channel needs 3ms to response parallel.
Section precision 4096, stable the servo, rudder shaking free.
HV input up to 10V.
MINI design for convenient assembling and operating.
Specifications:
Channel: 9channel, CH9 is for S.BUS
Max input voltage: 10V
Current: 38-45 mA(Voltage input: 5V)
Size: L*W*H=43*24*15mm

Section precision 4096

This ESC do not have the English instruction.

JMT Golden Color 920KV CCW CW Brushless Motor for DIY 3-4S Lipo RC Quadcopter F330 F450 F550 DJI Phantom Cheerson CX-20 DroneDescription:
Outer diameter: 28.0 mm
Height: 24.0 mm (Without Shaft)
K V: 920kv

HJ 450 Multicopter 450F nylon Fiber Frame Airframe kit Strong Smooth

RC KK MK MWC DIY Quadcopter plane
