Super Promotion GARTT 2 CW 2 CCW ML 1806 S 2300KV motor & 4 PCS Simon series 12A Brushless ESC Speed Controller for FPV QAV 250 Quadcopter Drone

Remote Promo Sale Product provide esc speed controller, 2300kv motor, speed controller Terrific Sale GARTT 2 CW 2 CCW ML 1806 S 2300KV motor & 4 PCS Simon series 12A Brushless ESC Speed Controller for FPV QAV 250 Quadcopter Drone. Get 9% discount Now! Now US $54.51/piece. Hurry buy Now before back to normal price! Normal price US $59.90. Dont waste your time. Buy Now only in GARTT Official Store Trusted Seller Store!

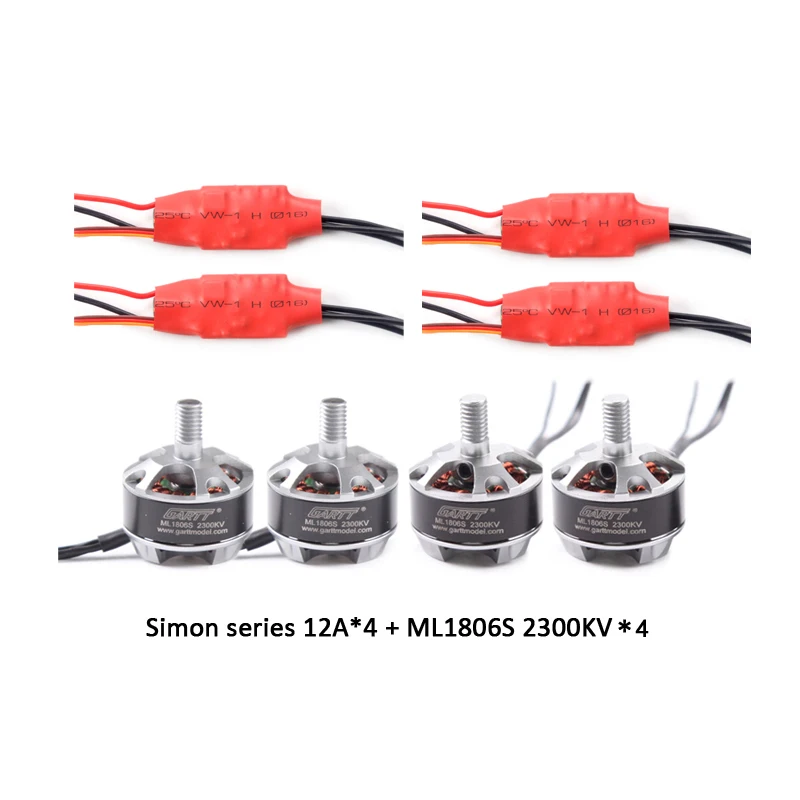

4 PCS ML1806S 2300KV motor & 4 PCS Gartt Simon series 12A Brushless ESC Speed Controller for FPV QAV 250 Quadcopter Drone

When using the screws we provided, pay attention to that if the thickness of the mounting plate of the motor is too thin, it may cause the screws too long and push up to the motor coil.

Specifications:

ML1806S 2300KV motor:

Motor KV: 2300KV RPM/V
Motor Resistance (RM): 0.1868 Ω
Idle Current (Io/10V): 0.5A/10V
Max Continuous Current: 12A
Max Continuous Power: 130W
Weight: ≈19g/0.67oz
Lipo Cell: 2-3S
Motor Diameter: 23mm/0.9in
Motor Body Length: 18.5mm/0.73in
No. of Stator Arms: 12
Pole Count 14
Overall Shaft Length: 23mm/0.91in
Shaft Diameter: 2.0mm/0.079in
Bolt holes spacing: 12mm/16mm/0.47in/0.63in
Bolt thread: M2×4
Maximum thrust :480g

Simon series12A ESC:

• Based on Simon K firmware, further optimized to the perfect drive performance.
• Low-voltage protection, over-heat protection and self-check functions.
• Separate power supply for MCU and BEC, enhancing the ESC’s ability of eliminating magnetic interference.
• Parameters of the ESC can be set via program card or transmitter.
• Throttle range can be set to be compatible with different receivers.
• Equipped with built-in linear BEC or switch BEC.
• Max speed: 210,000 rpm for 2-pole, 70,000 rpm for 6-pole, 35,000 rpm for 12-pole.
• Continuous Current: 12A
• Burst current (10S): 15A
• Li-xx Battery (cell): 2-3
• Dimension (L*W*H): 25mm x 20mm x 7mm
• Weight wires Included: 9
• BEC Mode: Linear
• BEC Output: 1A/5V
• Programmable: Yes

Package include:

Simon series12A ESC *4ML1806S 2300KV motor CW * 2ML1806S 2300KV motor CCW * 2
