Wonderful Discount GARTT 4x ML 1806 2300kv Brushless Motor with prop adapter+ 4x 12A BLHELI ESC For FPV QAV 150 180 210 250 Quadcopter Drone


Remote Promo Sale Product provide motor with, 2300kv brushless motor, brushless motor Hot Special GARTT 4x ML 1806 2300kv Brushless Motor with prop adapter+ 4x 12A BLHELI ESC For FPV QAV 150 180 210 250 Quadcopter Drone. Get 9% discount Now! Now US $57.24/piece. Hurry buy Now before back to normal price! Normal price US $62.90. Dont waste your time. Buy Now only in GARTT Official Store Trusted Seller Store!

Gartt 4x ML 1806 2300kv Motor with prop adapter+ 4x 12A BLHELI ESC For FPV QAV 150 180 210 250 Quadcopter Drone

When using the screws we provided, pay attention to that if the thickness of the mounting plate of the motor is too thin, it may cause the screws too long and push up to the motor coil

Specifications:

ML1806 2300KV motor:

Motor KV: 2300KV RPM/V
Motor Resistance (RM): 0.1868 Ω
Idle Current (Io/10V): 0.5A/10V
Max Continuous Current: 12A
Max Continuous Power: 130W
Weight: ≈19g/0.67oz
Lipo Cell: 2-3S
Motor Diameter: 23mm/0.9in
Motor Body Length: 18.5mm/0.73in
No. of Stator Arms: 12
Pole Count 14
Overall Shaft Length: 23mm/0.91in
Shaft Diameter: 2.0mm/0.079in
Bolt holes spacing: 12mm/16mm/0.47in/0.63in
Bolt thread: M2×4
Maximum thrust :480g

BLHELI ESC 12A ESC:

  • Continuous Current: 12A
  • Burst current (10S): 15A
  • Li-xx Battery (cell): 2-3
  • Dimension (L*W*H): 25mm x 20mm x 7mm
  • Weight wires Included: 9
  • BEC Mode: Linear
  • BEC Output: 1A/5V
  • Programmable: Yes

Package include:

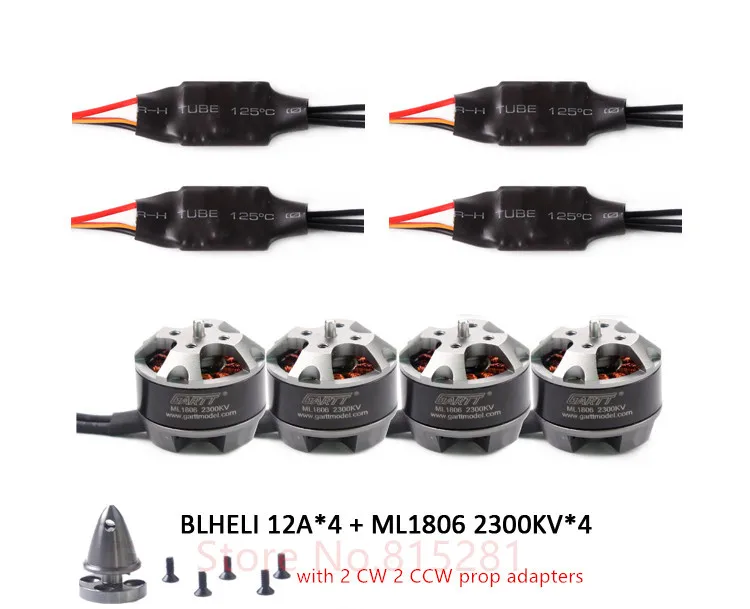

Simon series12A ESC *4ML1806 2300KV motor*4CW prop adapter *2CCW prop adapter *2
