Remote Promo Sale Product provide gprs rtu, alarm sms, controller control Cool New Free shipping Fire pump controller ATC60A01 alarm via sms/gprs remote terminal unit rtu. Get 55% discount Now! Now US $165.00/piece. Dont waste your time. Buy Now only in Antecheng Official Store Trusted Seller Store!

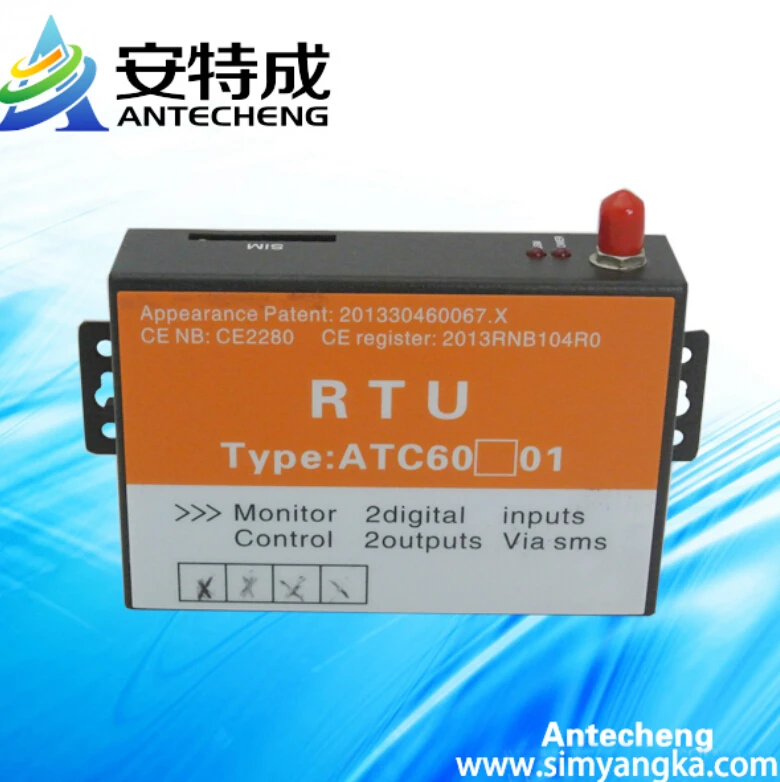

rtu ATC60A01tu
Introduction:
1. GSM alarm and controller
2. GSM remote switch
3. Monitor 2 digital inputs 2 relay outputs
4. Alarm via sms
ATC60A01 GPRS RTU enables various kinds of devices with I/O and Standard protocols to communicate over GSM/GPRS network and the Internet easily and freely. It can construct a smooth GPRS Data Tunnel between Host End and Remote End, ensuring an efficient communication for data transmission and remote device management. ATC60A01is an ideal solution for factory automation, environmental monitoring and remote device management for M2M industry.There is a built-in microprocessor chip running on a real-time operating system. It gives immediate response to any change in both inputs and outputs condition. A GSM modem is embedded in the RTU, user has to subscribe a SIM card for the RTU. The RTU can be installed in any location under GSM coverage.
Advance features
·Configurable for alarm and recover sms
·Automatically report the status of itself on schedule
·Support remote setting via sms commands
·Preset 10 phone numbers (can be distributed authority)
·Remote add/edit/delete phone group
·Automatically update internal clock via sms
·Time stamped in alarm or recover messages
·Support ring call when alarm
·Temperature sensor (optional)
·Internal battery (optional)
·Easy used GUI configure software
·Adopted highly integrated industrial CPU
·Reliable performance with built-in double watchdog
·Can execute preset tasks by re-defined conditions
·Low maintenance, 24×7 operation
2 digital inputs feature
·NO or NC type can be preset
·Configurable for alarm and recover sms
·Configurable for alarm ensure time
·Configurable for alarm delay time
·Configurable for service numbers authority of receive inputs alarm
·Remote query inputs status
2relay drivable outputs feature
·Multiple output type can be preset
·Remote On/Off/Pulse outputs
·Configurable for pulse time
·Remote query outputs status
·Outputs can be activated by alarm or call
·Outputs can be activated on schedule
Specifications
DC Power supply 9-28V DC (Standard adapter: DC 12V/1.5A)
Power consumption 12V input Max. 150mA/Average 50mA
Frequency range Dual-frequency 900/1800 or 900/1800/850/1900
SIM Card Supporting 3V SIM Card
Antenna 50 Ω SMA Antenna interface Serial RS232/RS485
Temperature range-40°C ~ +85°C Humidity range Relative humidity 95%
Digital Input 2 digital inputs(Dry contact/Wet contract)
output 2drivable relay outputs(open-collector outputs)
Output drive voltage Equal to input DC voltage
Output drive powerDrive voltage ≤35V, drive current ≤500mA
Exterior dimension120×80×27mm Weight 240 g
1 Install:
