Remote Promo Sale Product provide rc diy, rc tank chassis, rc tank metal track Fast Clearance DOIT RC T300 Metal Wall-E Tank Chassis Tracked Robot Tank Chassis with Aluminum Alloy Frame/Chassis 2 Motor Plastic Tracks DIY. Now US $95.00/piece. Dont waste your time. Buy Now only in shenzhendoit Store Trusted Seller Store!
- A novel design has already coming for the tank chassis, with beautiful shape, and full metal aluminum alloy structure. In this tank chassis, a space for 9g servo is left for the ultrasonic sensor, and a space for MG995 servo is also left to rotate the mechanical manipulator. What’s more, UNO R3 and NodeMCU development boards are also designed to install. In addition, the metal panel can be used to install the wheeled car by install the 25mm and/or 37mm motor frames. Interesting, a LED light is installed to brighten the dark in the night. Under the help of the motor, the tank chassis can be smoothly turn left, right, circle, forward and backward, ect. Therefore, when you get the chassis, it can do many things for you, like getting the temperature and mobile monitor. Certainly, we have developed a series of car/tank chassis. Hoping you can choose your loved car chassis.
- More details, please visit: https://github.com/SmartArduino/SZDOITWiKi/wiki to download the source code and the documents.
Novel and elegant appearance;
1) Reserve the space for 9g, MM95, MM96R gear;
2) Reserve for the intallation holes for UNO R3 and NodeMCU development board kit;
3) Reserve the space for robotic manipulator;
4) Design the LED light for the dark moving and brighten the light;
5) Add the 25mm and 37mm motor frame, can change the 4WD smart car;
Aluminum alloy;
1) The metal chassis is generated by aluminum alloy;
2) The bearing wheels and the driving wheels are metal;
3) The bearing wheelpiece is connected by the stainless steel and two bearings, which can let the bearing wheel is rotate freely with small frictions.
Solid structure;
1) The chassis can bearing the weight is about below 5kg; we test the 2.3kg;
2) All the chassis are metal, excluding the track (plastic).
Powerful force;
1) It is very powerful;
2) with Hall sensor and feedback;
Quickly, stability, flexibility;
Strong power;

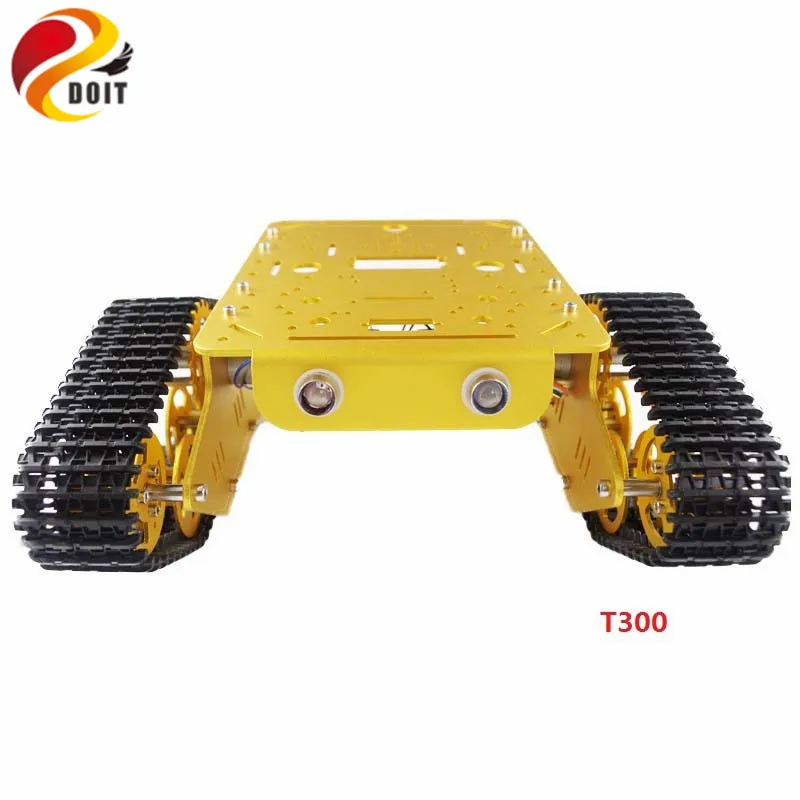

Name: T300 Intelligent track car/tank chassis
Material: aluminum alloy
Wheel: metal
Track: engineering plastic
Product size: about 290*270*100mm (length * width * height)
Weight: 1700g
Color: golden yellow/silver.
Name: 25mm gear motor
Output speed: 150±10%rpm
No_load current: 200mA (Max)
Stall current: 4500mA(max)
Stall torque: 9.5kgNaN
Rated speed: 100±10%rpm
Rated torque: 3000gNaN
Rated current: 1200mA (Max)
Noise: 56dB
Working voltage: 9V
Outside Shaft Length: 14.5mm
Shaft End Play: 0.05-0.50mm
Screw Size: M3.0
Dia. Of Shaft phi 4mm, D3.5
Encoder: 2pulses/circle
Working voltage for sensor: 3-5V
Chassis: 1 pcs
Driving wheels: 2 pcs
Bearing wheels: 10 pcs
Track: 2 pcs (can be changed the length)
DC motor: 2 pcs
LED light: 2 pcs
Screws: several
Screw tools: 3 pcs
For the shipping convenience, the tank/car chassis is unassembled.
Track can be connected by any length with a needle.
