Fast Discount DOIT C300 Aluminum Alloy Metal 4WD Wheel Car Chassis for Arduino NodeMCU Development Board DIY RC Remote Control Toy


Remote Promo Sale Product provide chassis 4wd, chassis diy, chassis car Excellent Gift DOIT C300 Aluminum Alloy Metal 4WD Wheel Car Chassis for Arduino NodeMCU Development Board DIY RC Remote Control Toy. Now US $85.43/piece. Dont waste your time. Buy Now only in shenzhendoit Store Trusted Seller Store!

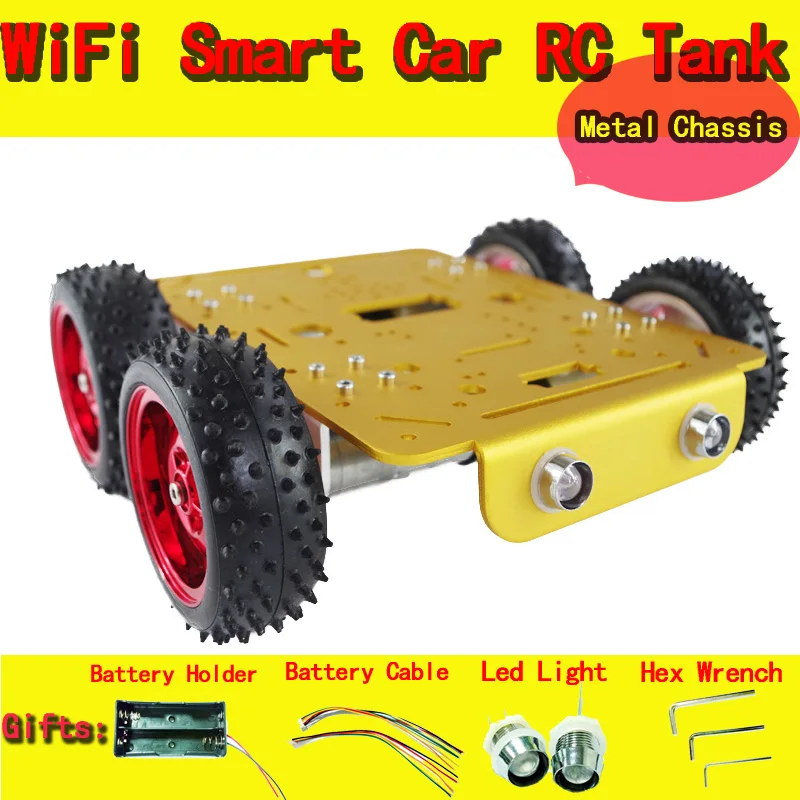

  • A novel design has already coming for the tank chassis, with beautiful shape, and full metal aluminum alloy structure. In this tank chassis, a space for 9g servo is left for the ultrasonic sensor, and a space for MG995 servo is also left to rotate the mechanical manipulator. What’s more, UNO R3 and NodeMCU development boards are also designed to install. In addition, the metal panel can be used to install the wheeled car by install the 25mm and/or 37mm motor frames. Interesting, a LED light is installed to brighten the dark in the night. Under the help of the motor, the tank chassis can be smoothly turn left, right, circle, forward and backward, ect. Therefore, when you get the chassis, it can do many things for you, like getting the temperature and mobile monitor. Certainly, we have developed a series of car/tank chassis. Hoping you can choose your loved car chassis.

  • More details, please visit: https://github.com/SmartArduino/SZDOITWiKi/wiki to download the source code and the documents.

  • Novel and elegant appearance;

  • Aluminum alloy;

  • Solid structure;

  • Powerful force;

  • Quickly, stability, flexibility;

  • Strong power;

  • Name: C300 Intelligent car chassis

  • Material: aluminum alloy

  • Wheel: Rubber (has blue and red colors.)

  • Product size: about 200*120*70mm (length * width * height)

  • Weight: 1000g

  • Color: golden yellow/silver for the chassis, and the wheel has blue and red.

Motor Parameters:
  • Name: 25mm gear motor

  • Output speed: 150±10%rpm

  • No_load current: 200mA (Max)

  • Stall current: 4500mA(max)

  • Stall torque: 9.5kgNaN

  • Rated speed: 100±10%rpm

  • Rated torque: 3000gNaN

  • Rated current: 1200mA (Max)

  • Noise: 56dB

  • Working voltage: 9V

  • Outside Shaft Length: 14.5mm

  • Shaft End Play: 0.05-0.50mm

  • Screw Size: M3.0

  • Dia. Of Shaft phi 4mm, D3.5

  • Encoder: 2pulses/circle

  • Chassis: 1 pcs

  • Wheels: 4 pcs

  • Copper couplings: 4 pcs

  • DC motor: 4 pcs

  • LED light: 2 pcs

  • Screws: several

  • Screw tools: 3 pcs

  • For the shipping convenience, the tank/car chassis is unassembled.

  • The wheel has blue and red.
