WiFi RC Smart Car based on ESP-12E

contact us to free get the Android APP source code.

This WiFi RC smart car is designed and developed based on ESP-12E from ESP8266, which can be controlled by mobile, PC, and wechat (now just in China). All of the documents can be downloaded for the DOIT official site: www.doit.am, including the scheme for car.

After get it, can further develop based on the Lua IDE.

Technical Specifications

Power Input

1) Motor Power(VM): 4.5~36V, can power separately;

2) Control Power (VIM): 4.5~9V(10V MAX), can power separately;

3) Module having shortcut module (connect VM and VIM), thus can use one-way power publicly (4.5~9V) to power control board and motor shield board;

• Logic Working Current (Iss):≤60mA (Vi=L), ≤22mA(Vi=H);

• Driving Working Current (Io): Io:≤1.2A;

• Max Dissipation Power: 4W(T=90degree);

• Control Signal Input Voltage: High voltage (2.3V≤VIH≤VIN); Lower voltage (-0.3V≤VIL≤1.5V);

• Working Temperature: -25deg-+125deg

• Driven Mode: Double-way large power H-bridge driven;

• Support wireless 802.11 b/g/n standard;

• Support STA/AP/STA+AP 3-types working mode;

• Built-in TCP/IP protocol stack; Support multi-way TCP Client connection (5 MAX);

• D0-D8, SD1-SD3: used as GPIO, PWM, IIC, and etc., Port-driven ability 15mA;

• AD0: 1-channel ADC;

• Power Input: 4.5V-9V (10VMAX); Support powered-USB; Provide USB-debug interface;

• Working Current: continual send:≈70mA (200mA MAX) standby:<200uA;

• Transmission Data:110-460800bps;

• Support UART/GPIO data communication interface;

• Support firmware by remote update;

• Support Smart Link;

• Working Temperature: -40-125deg;

• Driven Mode: double-way big-power H-bridge driven;

• Weight: about 310g (not including battery).

As for this WiFi car kit, it can work at many modes, such as: AP mode and STA mode.

AP mode:

STA mode:

• Under the STA mode, the Doit Car can be controlled by phone APP, WeChat, and page from internet. Note that, if using STA mode, you should firstly download the Doit Car Control.lua into the Doit Car. For more details about download methods, please visit the documents on NodeMCU development (). Before download the Doit Car Control.lua into the control-board, you must let the SSID name and password in Doit Car Control.lua same as the ones in your router. In addition, in the Doit Car Control.lua, you should rename the car as the one you like (the defaultname is car). This name is used as the device name controlled by mobile phone,Wechat, and web-page.
• The following Figure is shown that car is controlled by web-page.

Parameters:

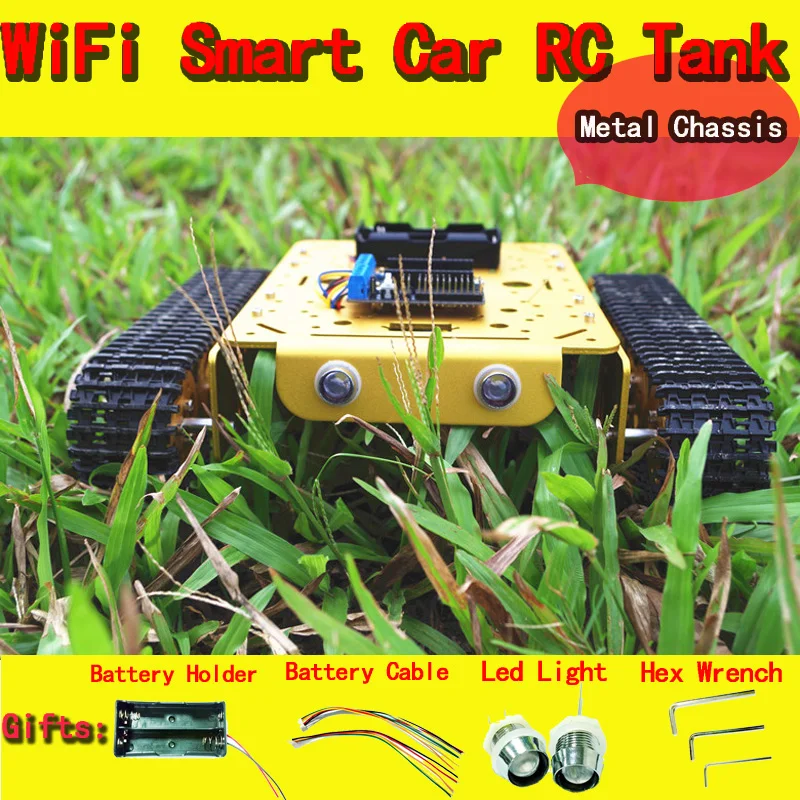

• Name: T200 Intelligent track car/tank chassis

• Material: aluminum alloy

• Wheel: metal

• Track: engineering plastic

• Product size: about 300*220*55mm (length * width * height)

• Weight: 1200g

• Color: golden yellow/silver

Package Included:

• Chassis: 1 pcs

• Driving wheels: 2 pcs

• Bearing wheels: 6 pcs

• Track: 2 pcs (can be changed the length)

• DC motor: 2 pcs

• NodeMCU development kit: 1 set

Free send:

• LED light: 2 pcs

• 18650 battery box: 1pcs

• Screws: several

• Screw tools: 3 pcs

Pictures:
