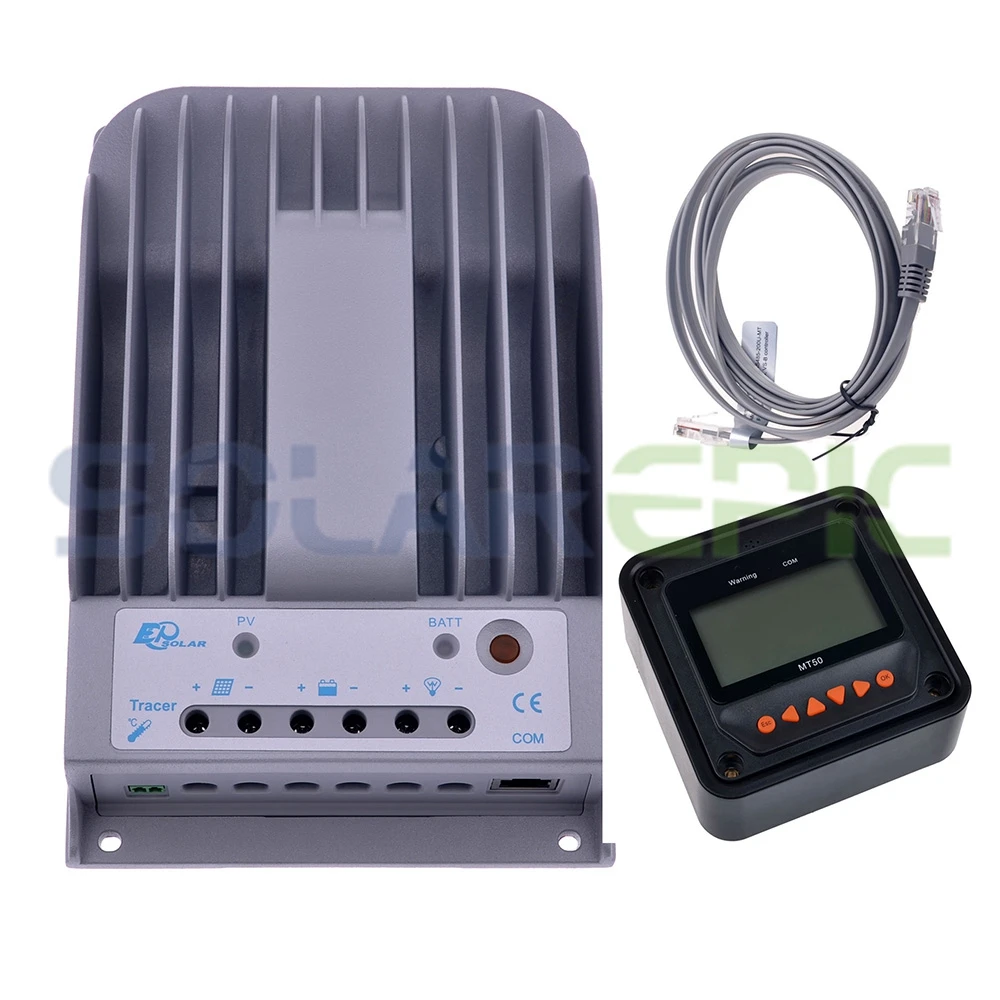

Remote Promo Sale Product provide solar charge controller, 20a solar charge controller, charge controller Wonderful Gift MPPT 20A Solar Charge Controller+Remote Meter MT50 EPSOLAR Max 150V PV Input Battery Panel Regulator 12V/24V DC Auto Charger. Get 20% discount Now! Now US $137.68/piece. Dont waste your time. Buy Now only in SolarEpic Official Store Trusted Seller Store!
-
-
MPPT Solar Charge Controller
150V PV input voltage
Current : 20A
Voltage : 12V/ 24V DC AUTO
Include LCD display : MT-50
- Features:
1. Advanced MPPT technology, with efficiency no less than 99.5%
2. Maximum conversion efficiency of 98%
3. Ultra-fast tracking speed and guaranteed tracking efficiency
4. Accurately recognizing and tracking of multiple power points
5. Reliable auto limit function of maximum PV input power, ensuring no overload under any circumstance
6. Wide MPP operating voltage range
7. Die-cast aluminum design, ensuring excellent heat dissipation characteristic
8. Multiple load control modes: manual control, light ON/OFF, light On+Timer and time control
9. Support 4 charging options: Sealed, Gel, Flooded and User
9. Battery temperature compensation function
10. Real-time energy statistics function
11. RS-485 communication bus interface and Modbus communication protocol,Available to meet various communication requirements in different situations
12. For PC monitoring and external display unit connecting MT50,realizing real-time data checking and parameters setting
13. Support software upgrade
Eletronic Protections:1. PV short circuit protection
2. PV over current protection
3. PV reverse polarity protection
4. Battery over voltage protection
5. Battery over discharge protection
6. Battery reverse polarity protection
7. Load overload protection
8. Load short circuit protection
9. Battery overheating protection
10. Controller overheating protection
Parameter:
MT50 Remote Meter Fewatures:Model
Tracer1215BN
Tracer2215BN
Tracer3215BN
Tracer4215BN
Nominal system voltage
12/24V auto work
Rated battery current
10A
20A
30A
40A
Rated load current
10A
20A
20A
20A
Max. PV open circuit voltage
150V at minimum operating environment temperature
138V at 25 environment temperature
MPP Voltage range
Battery voltage+2V~108V
Max. PV input power
130W (12V)
260W (12V)
390W (12V)
520W (12V)
260W (24V)
520W (24V)
780W (24V)
1040W (24V)
Equalize charging voltage
Sealed: 14.6V, Flooded: 14.8V, USER: 9~17V
Boost charging voltage
Gel: 14.2V, Sealed: 14.4V, Flooded: 14.6V, USER: 9~17V
Float charging voltage
Gel /Sealed /Flooded: 13.8V, USER: 9~17V
Low voltage reconnect voltage
Gel /Sealed /Flooded: 12.6V, USER: 9~17V
Low voltage disconnect voltage
Gel /Sealed /Flooded: 11.1V, USER: 9~17V
Self-consumption
≤60mA(12V) ≤30mA(24V)
Grounding
Common negative
Temp. compensation
-3mV/ /2V
Communication Port
RS485 / RJ45 interface
Working temperature
-35 ~+55
Storage temperature
-35~+80
Humidity
≤95% N.C.
Enclosure
IP30
Overall dimension
196x118x36mm
217x143x56mm
281x160x60mm
303x183x64mm
Terminal
4mm2
10mm2
16mm2
25mm2
Net weight
0.9kg
1.5kg
2.3kg
2.9kg
1. Automatic identify the controller, and display the type, model and relevant parameter data
2. Large-screen multifunction LCD displays all the operational data and system working status in digital, graphic and textual forms
3. With six navigation function keys, the operation is direct, convenient and rapid
4. Real-time energy statistics recording
5. Both data and data flowing on the same lead ,no need for external power
6. Real-time monitoring and acoustic alarm of failure information of the controller
7. Longer communication distance based on RS485
More powerful function Via MT50:1. Diversified load control modes : manual, light ON/OFF, Light ON+ Timer, Time Control
2. Battery type selection: Gel, sealed, flooded and USER type
3. Real-time monitor
4. Programmable parameters
5. Energy display function
Specification:Self-consumption Backlight and acoustic alarm on<65mA Backlight on<23mA Backlight off <15mA Faceplate dimensions 98×98 mm / 3.86×3.86 in Frame dimensions 114×114 mm / 4.49×4.49 in Connector type RJ45 Meter cable Standard 2m, max .50m Meter weight 0.190 Kg Ambient Temperature -20°c~+70°c/-4°F~158°F -
