Remote Promo Sale Product provide solar charge controller, mppt solar charge controller, charge controller Excellent Promotion 40A MPPT Solar Charge Controller + Remote Meter MT50 EPEVER Battery Regulator Max PV Input 100V 12V/24V DC Auto With LCD Display. Get 20% discount Now! Now US $171.99/piece. Dont waste your time. Buy Now only in SolarEpic Official Store Trusted Seller Store!

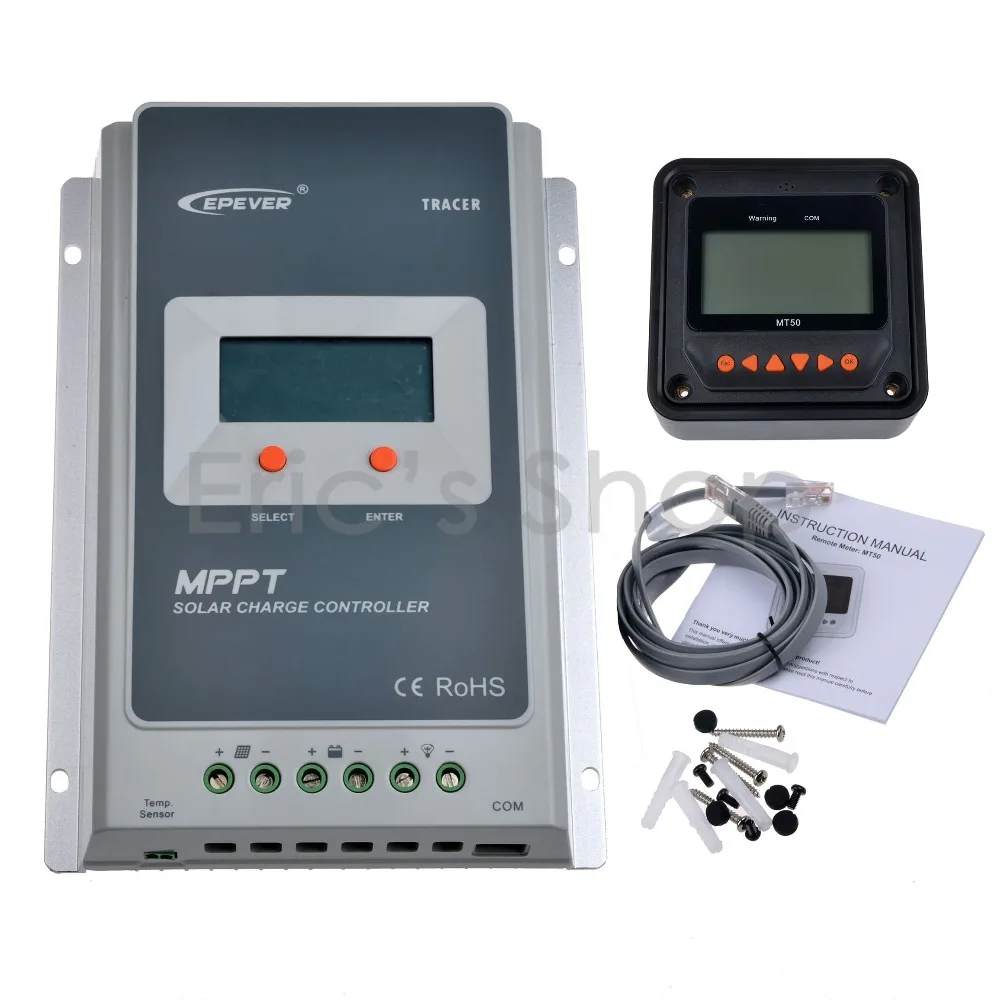

EPEVER MPPT Solar Charge Controller,Tracer-A Seres
40A ,12V/24VDC AUTO, + MT50 Remote meter
Max 100V PV Input,with LCD display
Battery : Sealed, Gel, Flooded
Features:
1. Advanced MPPT technology
2. High tracking efficiency no less than 99.5%
3. Peak conversion efficiency of 98%
4. Ultra-fast tracking speed
5. Accurately recognizing and tracking of multiple power point
6. Multi-function LCD displays system information intuitively
7. User programmable for battery types, load control etc.
8. 3-Stage charge with PWM output
9. Common positive grounding design
10. RS485 port with industrial standard MODBUS open architecture
11. Fully programmable function via PC software or remote meter
Electronic protections:
1. PV reverse polarity protection
2. PV short circuit protection
3. PV over current alarm protection
4. Battery overcharge protection
5. Battery over discharge protection
6. Battery reverse polarity protection
7. Load short circuit protection
8. Load overload protection
9. Overheating protection
| Model | Tracer1210A | Tracer2210A | Tracer3210A | Tracer4210A |
| Nominal system voltage | 12/24V auto work | |||
| Rated battery current | 10A | 20A | 30A | 40A |
| Rated load current | 10A | 20A | 30A | 40A |
| Max. PV open circuit voltage | 100V | |||
| Max. battery voltage | 32V | |||
| Max. PV input power | 130W (12V) | 260W (12V) | 390W (12V) | 520W (12V) |
| 260W (24V) | 520W (24V) | 780W (24V) | 1040W (24V) | |
| Equalize charging voltage | Gel: 14.2V, Sealed: 14.4V, Flooded: 14.6V | |||
| Boost charging voltage | Gel: 14.2V, Sealed: 14.4V, Flooded: 14.6V | |||
| Float charging voltage | Gel /Sealed /Flooded: 13.8V | |||
| Low voltage reconnect voltage | Gel /Sealed /Flooded: 12.6V | |||
| Low voltage disconnect voltage | Gel /Sealed /Flooded: 11.1V | |||
| Self-consumption | ≤20mA(12V) ≤16mA(24V) | |||
| Grounding | Common positive | |||
| Temp. compensation | -3mV/°c/2V | |||
| Communication Port | RS485 / RJ45 interface | |||
| Working temperature | -25°c~+45°c | |||
| Storage temperature | -35°c~+80°c | |||
| Humidity | ≤95% N.C. | |||
| Enclosure | IP30 | |||
| Overall dimension | 172x139x44mm | 172x139x44mm | 228x164x55mm | 252x180x63mm |
| Terminal | 4mm2 | 10mm2 | 10mm2 | 10mm2 |
| Net weight | 0.6kg | 1.1kg | 1.2kg | 1.9kg |
Specifications Via MT50:
| Self-consumption | Backlight and acoustic alarm on<65mA |
| Backlight on<23mA | |
| Backlight off <15mA | |
| Faceplate dimensions | 98×98 mm / 3.86×3.86 in |
| Frame dimensions | 114×114 mm / 4.49×4.49 in |
| Connector type | RJ45 |
| Meter cable | Standard 2m, max .50m |
| Meter weight | 0.190 Kg |
| Ambient Temperature | -20°c~+70°c/-4°F~158°F |
