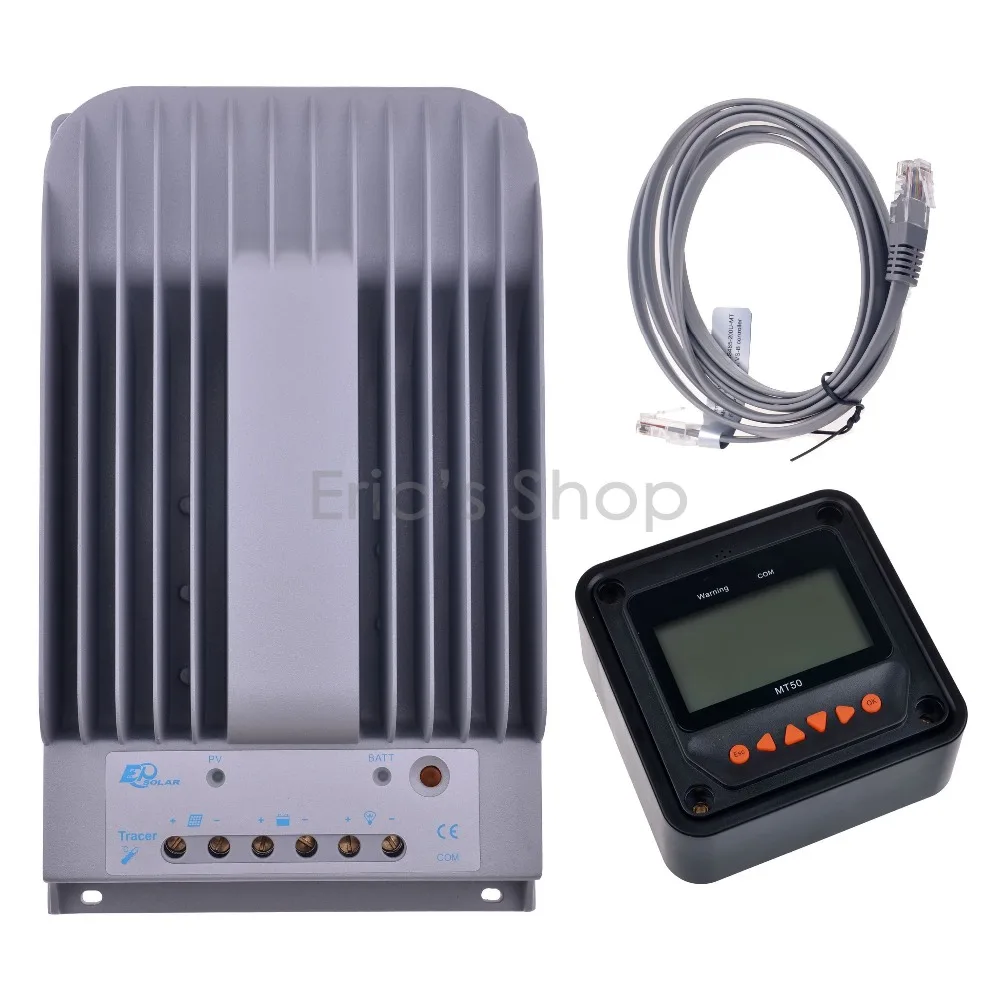

Super Sale MPPT 30A Solar Charge Controller + Remote Meter MT50 EPSOLAR 30A Max 150V PV Battery Panel Regulator 12V/24V DC Auto Charger

Remote Promo Sale Product provide epsolar 30a, solar charge controller, 30a solar charge controller Hot Discount MPPT 30A Solar Charge Controller + Remote Meter MT50 EPSOLAR 30A Max 150V PV Battery Panel Regulator 12V/24V DC Auto Charger. Get 20% discount Now! Now US $177.27/piece. Dont waste your time. Buy Now only in SolarEpic Official Store Trusted Seller Store!

MPPT Solar Charge Controller

150V PV input voltage

Current : 30A

Voltage : 12V/ 24V DC AUTO

Include LCD display : MT-50

Features:

1. Advanced MPPT technology, with efficiency no less than 99.5%

2. Maximum conversion efficiency of 98%

3. Ultra-fast tracking speed and guaranteed tracking efficiency

4. Accurately recognizing and tracking of multiple power points

5. Reliable auto limit function of maximum PV input power, ensuring no overload under any circumstance

6. Wide MPP operating voltage range

7. Die-cast aluminum design, ensuring excellent heat dissipation characteristic

8. Multiple load control modes: manual control, light ON/OFF, light On+Timer and time control

9. Support 4 charging options: Sealed, Gel, Flooded and User

9. Battery temperature compensation function

10. Real-time energy statistics function

10. RS-485 communication bus interface and Modbus communication protocol,Available to meet various communication requirements in different situations

11. For PC monitoring and external display unit connecting MT50,realizing real-time data checking and parameters setting

12. Support software upgrade

Eletronic Protections:

1. PV short circuit protection

2. PV over current protection

3. PV reverse polarity protection

4. Battery over voltage protection

5. Battery over discharge protection

6. Battery reverse polarity protection

7. Load overload protection

8. Load short circuit protection

9. Battery overheating protection

10. Controller overheating protection

Parameter:

Model	Tracer1215BN	Tracer2215BN	Tracer3215BN	Tracer4215BN
Nominal system voltage	12/24V auto work
Rated battery current	10A	20A	30A	40A
Rated load current	10A	20A	20A	20A
Max. PV open circuit voltage	150V at minimum operating environment temperature 138V at 25 environment temperature
MPP Voltage range	Battery voltage+2V~108V
Max. PV input power	130W (12V)	260W (12V)	390W (12V)	520W (12V)
	260W (24V)	520W (24V)	780W (24V)	1040W (24V)
Equalize charging voltage	Sealed: 14.6V, Flooded: 14.8V, USER: 9~17V
Boost charging voltage	Gel: 14.2V, Sealed: 14.4V, Flooded: 14.6V, USER: 9~17V
Float charging voltage	Gel /Sealed /Flooded: 13.8V, USER: 9~17V
Low voltage reconnect voltage	Gel /Sealed /Flooded: 12.6V, USER: 9~17V
Low voltage disconnect voltage	Gel /Sealed /Flooded: 11.1V, USER: 9~17V
Self-consumption	≤60mA(12V) ≤30mA(24V)
Grounding	Common negative
Temp. compensation	-3mV/ /2V
Communication Port	RS485 / RJ45 interface
Working temperature	-35 ~+55
Storage temperature	-35~+80
Humidity	≤95% N.C.
Enclosure	IP30
Overall dimension	196x118x36mm	217x143x56mm	281x160x60mm	303x183x64mm
Terminal	4mm2	10mm2	16mm2	25mm2
Net weight	0.9kg	1.5kg	2.3kg	2.9kg

MT50 Remote Meter Fewatures:

1. Automatic identify the controller, and display the type, model and relevant parameter data

2. Large-screen multifunction LCD displays all the operational data and system working status in digital, graphic and textual forms

3. With six navigation function keys, the operation is direct, convenient and rapid

4. Real-time energy statistics recording

5. Both data and data flowing on the same lead ,no need for external power

6. Real-time monitoring and acoustic alarm of failure information of the controller

7. Longer communication distance based on RS485

More powerful function Via MT50:

1. Diversified load control modes : manual, light ON/OFF, Light ON+ Timer, Time Control

2. Battery type selection: Gel, sealed, flooded and USER type

3. Real-time monitor

4. Programmable parameters

5. Energy display function

Specifications Via MT50:

Self-consumption	Backlight and acoustic alarm on<65mA
	Backlight on<23mA
	Backlight off <15mA
Faceplate dimensions	98×98 mm / 3.86×3.86 in
Frame dimensions	114×114 mm / 4.49×4.49 in
Connector type	RJ45
Meter cable	Standard 2m, max .50m
Meter weight	0.190 Kg
Ambient Temperature	-20°c~+70°c/-4°F~158°F
