Remote Promo Sale Product provide rc tank car, mini tank rc, tank rc Cool Promo DOIT Metal Tracked Tank Chassis mini T100 Tracked Vehicle Smart Car with 2 Motor for Robot Competition Graduation Design DIY RC. Get 30% discount Now! Now US $35.85/piece. Dont waste your time. Buy Now only in szdoit Store Trusted Seller Store!

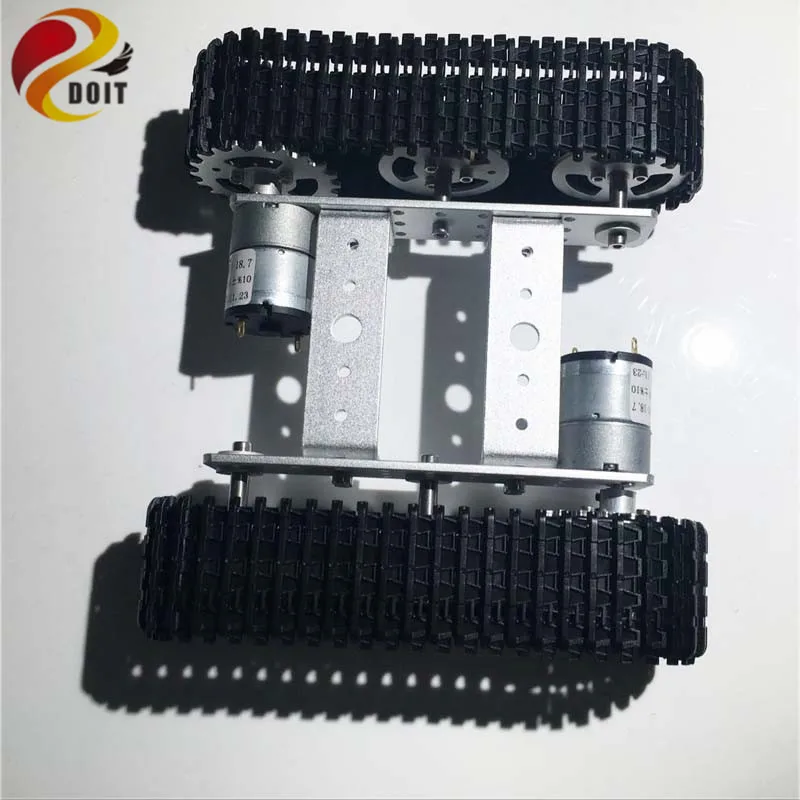

Name: Mini T100 Tracked Tank Chassis
Material: Aluminum Alloy
Surface treatment: sandblasting oxidation
Color: Golden yellow、silver、black (for optional)
Track: Engineering plastic
Size: About 185*200*60mm(Length*width*Height)
Weight: 0.65kg
Design load: 5kg
More details, please visit: https://github.com/SmartArduino/SZDOITWiKi/wiki to download the source code and the documents.
Motor: 33GB-520 Motor, 9V&150RPM, 12V&320RPM
Motor parameters(33GB-520 Motor):
Rated Voltege: DC12V
No load Current: 100mA
Voltage: 6-12V
No load Speed: 170-350r/min
Weight: 100g
Motor parameters(25mm 9V DC Motor, has hall sensor)
Name: 25mm gear motor
Output speed: 150±10%rpm
No_load Current: 200mA (Max)
Stall current: 4500mA(max)
Stall torque: 9.5kgNaN
Rated speed: 100±10%rpm
Rated torque: 3000gNaN
Rated Current: 1200mA (Max)
Noise: 56dB
Working voltage: 9V
Outside Shaft Length: 14.5mm
Shaft End Play: 0.05-0.50mm
Screw Size: M3.0
Dia. Of Shaft phi4mm, D3.5
encoder: 2 pulses/circle
Motor parameters(12V DC Motor)
Voltage: 12V DC
RPM: 320RPM
Current: 0.55A
Diameter: 25mm
Height (excl. shaft): 68mm
Shaft length: 9.5mm
Shaft diameter: 4mm
Weight: 180g
Brand new and unused
Torque: 13kg.cm
max effective point: load 4.0kg.cm/235rpm/2.5W/0.58A
Max power: load 7kg.cm/215rpm/3.1w/0.65A
Stall current: 4.8A
silver with 9v motor:
- Silver mini T100 robot tank chassis: 1set(Motor: 9V motor)
silver with 33 motor:
- Silver mini T100 robot tank chassis: 1set(Motor: 33 motor)
silver with 12V motor:
- Silver mini T100 robot tank chassis: 1set(Motor: 12V motor)
Golden with 9v motor:
- Golden mini T100 robot tank chassis: 1set(Motor: 9V motor)
Golden with 33 motor:
- Golden mini T100 robot tank chassis: 1set(Motor: 33 motor)
Golden with 12V motor:
- Golden mini T100 robot tank chassis: 1set(Motor: 12V motor)
Black with 9v motor:
- Black mini T100 robot tank chassis: 1set(Motor: 9V motor)
Black with 33 motor:
- Black mini T100 robot tank chassis: 1set(Motor: 33 motor)
Black with 12V motor:
- Black mini T100 robot tank chassis: 1set(Motor: 12V motor)
- For the shipping convenience, the tank/car chassis is unassembled.
