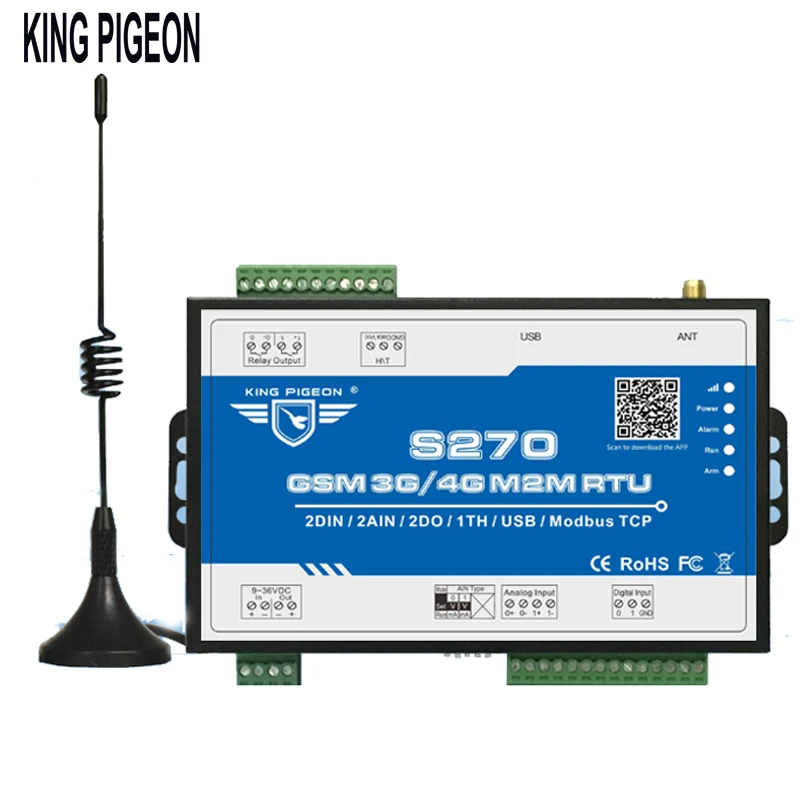

GSM M2M RTU S270 Remote Monitoring Temperature Humidty Alarm System SMS GPRS Communication BTS Access Relay Control King Pigeon
The GSM M2M RTU is a multi I/O port remote terminal unit. It is special for BTS monitoring, remote data acquisition, telemetrically, BTS access control and other applications. It supports voice communication, SMS, GPRS communications.
1. ARM® Cortex™-M4 32 Bit RISC Core, 168 MHz inside, RTOS system;
2. Widely Rated voltage range, 9~36VDC, Inbuilt large capacity rechargeable backup battery;
3. Large internal memory for save 1000 historical data, USB port for configuration and upgrade firmware;
4. 2 analog inputs, 12bits, supports 0-5V, 0-20mA, 4-20mA;
5. 2 Relay outputs, 5A/30VDC,5A/250VAC;
6. 2 digital inputs, dry contact or level input. One of the input can be used as counter;
7. 1 temperature probe input, 1 humidity transducer input;
8. 2 IP data centers, supports Modbus TCP,TCP/IP protocol over GPRS/3G network;
9. Automatically resend the data while communication failure, GPRS failure will alert by SMS text;
10. Supports remotely restart the RTU, and configure it by SMS commands remotely;
11. Supports over voltage protection and phase-reversal protection;
12. 10 SMS Alert and auto dial numbers, can program to receive specified alarm message.
13. 10 access control authorized numbers, can open the BTS door or turn on/off machine with a free charge call at the specified time.
| Item | Reference Scope |
| DC Power supply | Standard adapter: DC 12V/1.5A Range 9-36VDC |
| Power consumption | Standby:12V/70mA; Working Max.: 12V/300mA |
| GSM Frequency | 850/900/1800/1900Mhz |
| Transmit power | Class 4 (2W) at EGSM 900 and EGSM 850 Class 1 (1W) at GSM 1800 and GSM 1900 |
| GPRS connectivity | GPRS multi-slot class 10 |
| GPRS Data Transmission | GPRS data downlink transfer: max. 85.6 kbps GPRS data uplink transfer: max. 42.8 kbps Coding scheme: CS-1, CS-2, CS-3 and CS-4 |
| TCP/IP stack | TCP,UDP |
| SIM interface | Supporting 3V SIM Card |
| External antenna | SMA Antenna interface, 50 Ohm |
| Serial Interfaces | 1 USB Port; |
| Protocols | SMS, GPRS UDP,TCP, Modbus RTU, Modbus TCP and more equipment protocols can be added according to requirements. |
| Digital Inputs | 2 Digital input, NC/NO/Edge/Level type, Can be used as Pulse Counters; |
| Analog Inputs | 2 Analog Inputs. 12 bit resolution, 0-5V or 0-20mA or 4-20mA; |
| Temp.&Humi Inputs | Temperature range: -40°C to +80°C. Humidity Range: 0~100%RH; |
| Relay Outputs | 2, Rated: 5A/30VDC,5A/250VAC |
| Power Outputs | 1 Port, for external device; |
| Memory Capacity | Internal Memory inside, can save the data for 1000events. |
| Backup Battery | 3.7V 1200mAH |
| Temperature range | -10-+70 °C |
| Humidity range | Relative humidity 95% (condensation free) |
| Exterior dimension | 168mm*113mm*32.3mm |
| Net Weight | 1000 g |
Standard Package list:
S270 M2M RTU Controller unit *1
AC/DC Power adapter *1 (AC100~240V to DC 12V/2A, UK/USA/EU/AU plug available)
CD (PC Programming tool and User Manual) *1
GSM Antenna *1
Connectors *1 set
Please Note:This link GSM Alarm is the 2G.If you need 3G.Please contact us and add 20usd please.
