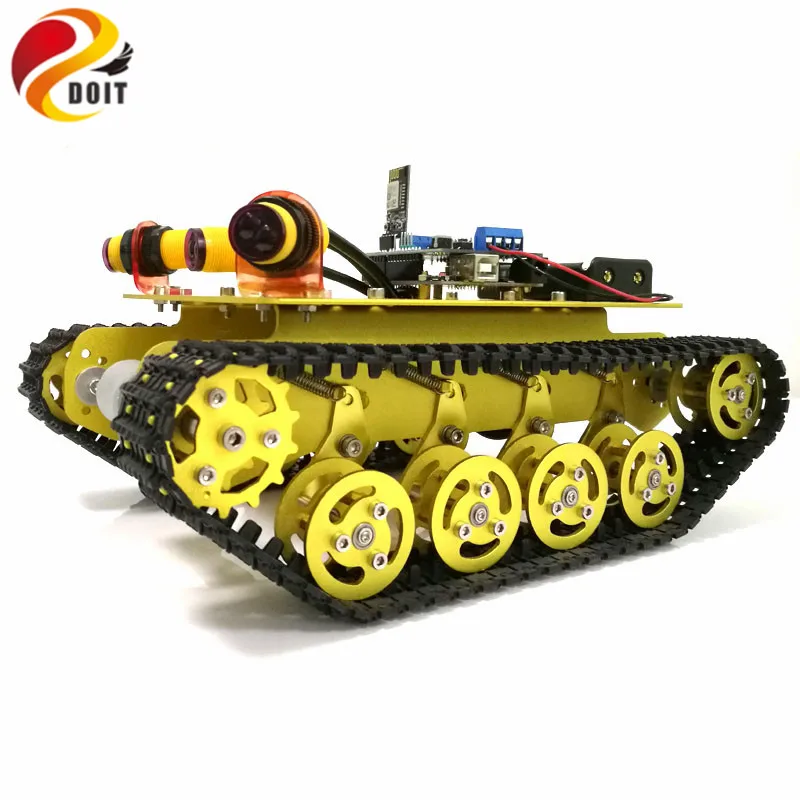

2018 Flash Deal DOIT WiFi Control Obstacle Avoidance Smart Robot Crawler Tank Car Chassis TS100 with Shock Absorption for Modification by Phone


Remote Promo Sale Product provide tank control, car tank, wifi robot tank Big Promo DOIT WiFi Control Obstacle Avoidance Smart Robot Crawler Tank Car Chassis TS100 with Shock Absorption for Modification by Phone. Get 30% discount Now! Now US $37.50/piece. Dont waste your time. Buy Now only in szdoit Store Trusted Seller Store!

Official wiki: wiki.doit.am
  • This Arduino uno development kit, is designed based on the Arduino uno board, together with 2-channel & 16-channel servo shield board to drive the tank and 2WD car. In addition, it has 1pcs DT-06 WiFi module, you can control the car by phone via wifi control. In addition, there has 3 Obstacle Avoidance sensor.
  • Provide source code, App and user manual.
  • More details, please visit: https://github.com/SmartArduino/SZDOITWiKi/wiki to download the source code and the documents.

TS100 tank Chassis:

  • Name: TS100 Intelligent track car/tank chassis
  • Material: aluminum alloy
  • Wheel: metal
  • Track: engineering plastic
  • Product size: about 275mm*190mm*95mm (length * width * thickness)
  • Weight: 1100g
  • Color: golden yellow/silver/Black

Motor type:

  • 33GB-520 Motor,
  • 9V&150RPM: has Hall sensor
  • 12V&320RPM: No Hall sensor.

Motor parameters(33GB-520 Motor):

  • Rated Voltege: DC12V
  • No load Current: 100mA
  • Voltage: 6-12V
  • No load Speed: 170-350r/min
  • Weight: 100g

Motor parameters(25mm 9V DC Motor):

  • Name: 25mm gear motor
  • Output speed: 150±10%rpm
  • No_load Current: 200mA (Max)
  • Stall current: 4500mA(max)
  • Stall torque: 9.5kgNaN
  • Rated speed: 100±10%rpm
  • Rated torque: 3000gNaN
  • Rated Current: 1200mA (Max)
  • Noise: 56dB
  • Working voltage: 9V
  • Outside Shaft Length: 14.5mm
  • Shaft End Play: 0.05-0.50mm
  • Screw Size: M3.0
  • Dia. Of Shaft phi4mm, D3.5
  • encoder: 2 pulses/circle

Motor parameters(12V DC Motor)

  • Voltage: 12V DC
  • RPM: 320RPM
  • Current: 0.55A
  • Diameter: 25mm
  • Height (excl. shaft): 68mm
  • Shaft length: 9.5mm
  • Shaft diameter: 4mm
  • Weight: 180g
  • Brand new and unused
  • Torque: 13kg.cm
  • max effective point: load 4.0kg.cm/235rpm/2.5W/0.58A
  • Max power: load 7kg.cm/215rpm/3.1w/0.65A
  • Stall current: 4.8A
  • More details, please visit: https://github.com/SmartArduino/SZDOITWiKi/wiki

Description of option:

Only controller kit:

  • 2-channel motor&16-channel servo shield board: 1pcs
  • UNO board: 1pcs
  • USB Cable: 1pcs
  • DT-06 wifi Module: 1pcs
  • Infrared obstacle Avoidance sensor: 3pcs
  • Infrared obstacle Avoidance sensor bracket: 3pcs(The color is transparent)
  • Active buzzer module: 1pcs
  • Female to Female dupont line: 40pcs
  • Copper Pillars kit: 1set
  • battery box: 1pcs

silver with 33 motor:

  • silver TS100 tank chassis: 1set(33 motor)
  • controller kit: 1set

black with 33 motor:

  • black TS100 tank chassis: 1set(33 motor)
  • controller kit: 1set

yellow with 33 motor:

  • yellow TS100 tank chassis: 1set(33 motor)
  • controller kit: 1set

silver with 9V motor:

  • silver TS100 tank chassis: 1set(9V motor)
  • controller kit: 1set

black with 9V motor:

  • black TS100 tank chassis: 1set(9V motor)
  • controller kit: 1set

yellow with 9V motor:

  • yellow TS100 tank chassis: 1set(9V motor)
  • controller kit: 1set

silver with 12V motor:

  • silver TS100 tank chassis: 1set(12V motor)
  • controller kit: 1set

black with 12V motor:

  • black TS100 tank chassis: 1set(12V motor)
  • controller kit: 1set

yellow with 12V motor:

  • yellow TS100 tank chassis: 1set(12V motor)
  • controller kit: 1set

For the shipping convenience, the tank/car chassis is unassembled.
