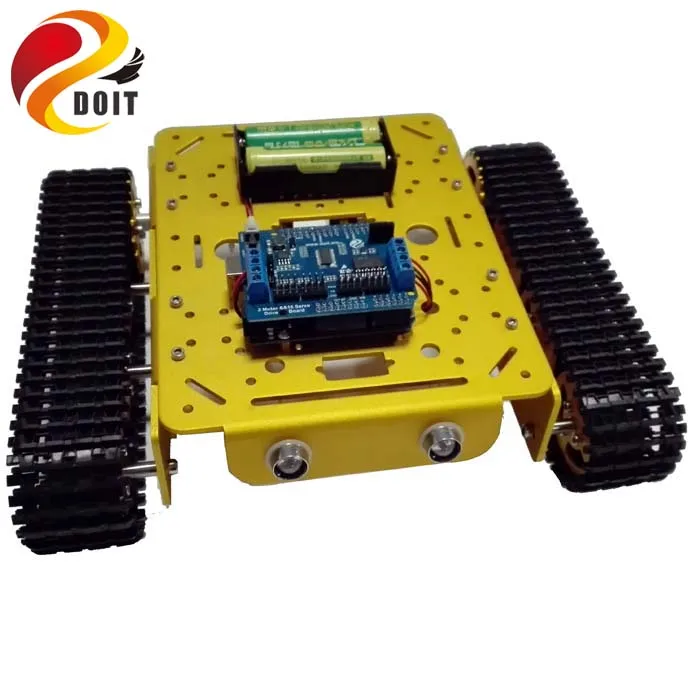

Remote Promo Sale Product provide metal tank, wifi tank, tank wifi Big Sale Original DOIT WiFi Metal Tank T200 by Android/iOs Phone From ESPDUINO Development Kit with 2-way Motor & 16 Way Driven Shield. Get 30% discount Now! Now US $122.56/piece. Dont waste your time. Buy Now only in szdoit Store Trusted Seller Store!
Technical Specifications
Power Input
1) Motor Power(VM): 4.5~36V, can power separately;
2) Control Power (VIM): 4.5~9V(10V MAX), can power separately;
3) Module having shortcut module (connect VM and VIM), thus can use one-way power publicly (4.5~9V) to power control board and motor shield board;
Logic Working Current (Iss):≤60mA (Vi=L), ≤22mA(Vi=H);
Driving Working Current (Io): Io:≤1.2A;
Max Dissipation Power: 4W(T=90degree);
Control Signal Input Voltage: High voltage (2.3V≤VIH≤VIN); Lower voltage (-0.3V≤VIL≤1.5V);
Working Temperature: -25deg-+125deg
Driven Mode: Double-way large power H-bridge driven;
Support wireless 802.11 b/g/n standard;
Support STA/AP/STA+AP 3-types working mode;
Built-in TCP/IP protocol stack; Support multi-way TCP Client connection (5 MAX);
D0-D8, SD1-SD3: used as GPIO, PWM, IIC, and etc., Port-driven ability 15mA;
AD0: 1-channel ADC;
Power Input: 4.5V-9V (10VMAX); Support powered-USB; Provide USB-debug interface;
Working Current: continual send:≈70mA (200mA MAX) standby:<200uA;
Transmission Data:110-460800bps;
Support UART/GPIO data communication interface;
Support firmware by remote update;
Support Smart Link;
Working Temperature: -40-125deg;
Driven Mode: double-way big-power H-bridge driven;
Weight: about 310g (not including battery)
ESPduino is developed by Doit company based on the ESP8266 ESP-13, which can be compatible with Arduino UNO R3 developmen board. By using the ESP8266 WiFi and MCU,
ESPduino supports WiFi. Compared to the traditional Arduino UNO development baord, users dont have to buy another WiFi development board.
Installation:
1. Download the Arduino IDE
http://
www.arduino.cc/en/main/software
2. Install the Arduino and Run
a) Open "File"->Preferences
b) input the following web address:
http://
wechat.doit.am/package_esp8266com_index.json
c) Tool->development board, and search ESP8266
3) Click "install"
If install the complete version with ESP8266, then can ignore the above steps.
Download site:
https://
github.com/esp8266/Arduino
#include #include
const char* ssid = "Doit";
const char* password = "doit3305";
int timezone = 3;
int dst = 0;
void setup() {
Serial.begin(115200);
Serial.setDebugOutput(true);
WiFi.mode(WIFI_STA);
WiFi.begin(ssid, password);
Serial.println("nConnecting to WiFi");
while (WiFi.status() != WL_CONNECTED) {
Serial.print(".");
delay(1000);
}
configTime(3 * 3600, 0, "pool.ntp.org", "time.nist.gov");
Serial.println("nWaiting for time");
while (!time(nullptr)) {
Serial.print(".");
delay(1000);
}
Serial.println("");
}
void loop() {
time_t now = time(nullptr);
Serial.println(ctime(&now));
delay(1000);
}
More details, please visit
http://
bbs.doit.am/forum.php?mod=forumdisplay&fid=69
Noveland elegant appearance;
1) Reserve the space for 9g, MM95, MM96R gear;
2) Reserve for the intallation holes for UNO R3 and NodeMCU development board kit;
3) Reserve the space for robotic manipulator;
4) Design the LED light for the dark moving and brighten the light;
5) Add the 25mm and 37mm motor frame, can change the 4WD smart car;
Aluminum alloy;
1) The metal chassis is generated by aluminum alloy;
2) The bearing wheels and the driving wheels are metal;
3) The bearing wheelpiece is connected by the stainless steel and two bearings, which can let the bearing wheel is rotate freely with small frictions.
Solid structure;
1) The chassis can bearing the weight is about below 5kg; we test the 2.3kg;
2) All the chassis are metal, excluding the track (plastic).
Powerful force;
1) It is very powerful;
2) with Hall sensor and feedback;
Quickly,stability, flexibility;
Strong power;
Name: T200 Intelligent track car/tank chassis
Material: aluminum alloy
Wheel: metal
Track: engineering plastic
Weight: 1200g
Color: golden yellow/silver.
More details, please visit: https://github.com/SmartArduino/SZDOITWiKi/wiki
Chassis: 1 pcs
Driving wheels: 2 pcs
Bearing wheels: 6 pcs
Track: 2 pcs (can be changed the length)
DC motor: 2 pcs
LED light: 2 pcs
ESPDUINO development kit: 1 set
18650 battery box: 1pcs
Screws: several
Screw tools: 3 pcs
1. Due to computer monitor and the actual shooting brightness and other reasons, there will be a certain color difference.
The final color please refer to our actual goods. Please know this before you buy it. Thank you !
2. The picture we show is 100% Real Object Photography.
3. The size may have 2-3cm differs due to the maunal measurement.
4. For the shipping convenience, the product is unassembled.
