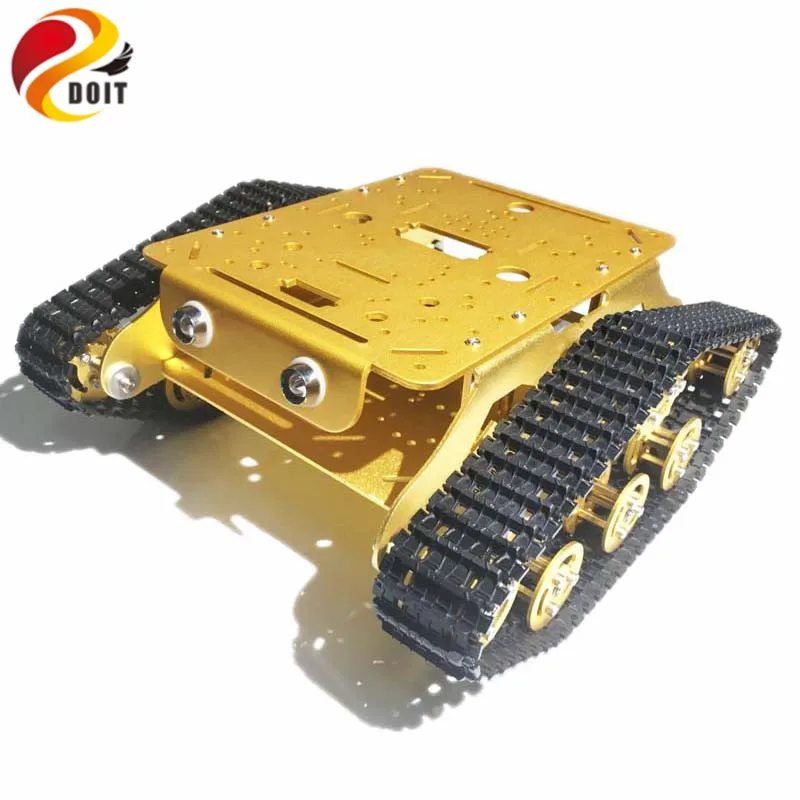

2018 Promo Original DOIT Caeser TSD300 4WD Shock Absorption Crawler Metal Tank Car Chassis based on ESPduino Development Kit Smart Robot

Remote Promo Sale Product provide crawler metal, tank car, 4wd crawler Fast Promotion Original DOIT Caeser TSD300 4WD Shock Absorption Crawler Metal Tank Car Chassis based on ESPduino Development Kit Smart Robot. Now US $86.29/piece. Dont waste your time. Buy Now only in szdoit Store Trusted Seller Store!

• Name: Caeser TS600 Damping Tank Chassis

• Color: Golden yellow; Silver; Black

• Size: About 290*270*100mm（Length*Width*Height）

• Weight: About 1.65kg

• Design Load: 5kg

• More details, please visit: https://github.com/SmartArduino/SZDOITWiKi/wiki

​Motor Parameters(25mm 9V DC Motor):

• Name: 25mm gear motor

• Output speed: 150±10%rpm

• No_load Current: 200mA (Max)

• Stall current: 4500mA(max)

• Stall torque: 9.5kgNaN

• Rated speed: 100±10%rpm

• Rated torque: 3000gNaN

• Rated Current: 1200mA (Max)

• Noise: 56dB

• Working voltage: 9V

• Outside Shaft Length: 14.5mm

• Shaft End Play: 0.05-0.50mm

• Screw Size: M3.0

• Dia. Of Shaft phi4mm, D3.5

• encoder: 2 pulses/circle

Motor parameters(12V DC Motor):

• Voltage: 12V DC

• RPM: 320RPM

• Current: 0.55A

• Diameter: 25mm

• Height (excl. shaft): 68mm

• Shaft length: 9.5mm

• Shaft diameter: 4mm

• Weight: 180g

• Brand new and unused

• Torque: 13kg.cm

• max effective point: load 4.0kg.cm/235rpm/2.5W/0.58A

• Max power: load 7kg.cm/215rpm/3.1w/0.65A

• Stall current: 4.8A

• TS600 tracked Tank Chassis: 1 set

• ESPduino development Kit: 1 set

• For the shipping convenience, the tank/car chassis is unassembled.

​
