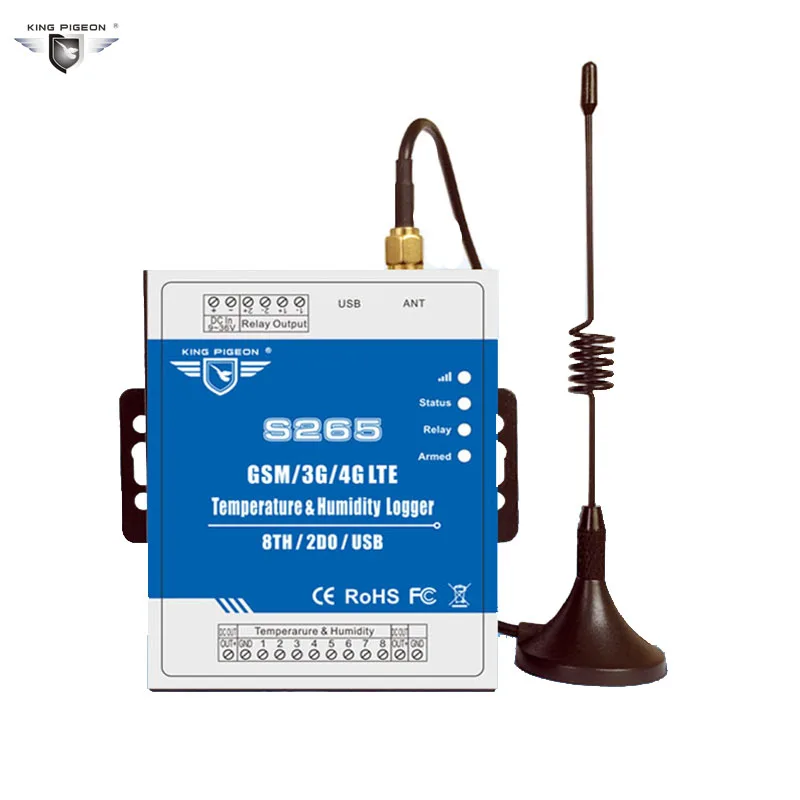

Data Logger Alarm 2G/3G/4G Temperature Humidity GSM Remote Controller SMS/Call Alert Security Alarm System IOS Android APP S265
The S265 GSM GPRS SMS 3G 4G Temperature & Humidity Monitoring Unit can be used for remote monitoring onsite temperature and humidity,once the temperature or humidity exceeds the preset value, will send SMS to 10 user
numbers to alarm. also, it supports GPRS to transfer data to remote monitoring center.
Model List
| Model | GSM/GPRS/3G/4G | Relay Outputs | Sensor Type | Record | Measuring Range |
| S264 | V | 2 | Temperature& Humidity Model: AM230x | 200000 | Temp:-40-80°C ,Humidity:0-99 RH% |
| S265 | V | 2 | Temp:-40-80°C ,Humidity:0-99 RH% | ||
| S266 | V | 2 | Temperature Model: DS18B20 | Temp:–55°C to +125°C (–67°F to +257°F) | |
| Notice | 1． Default version is GSM； 2． For 3G WCDMA and 4G LTE version, please tell our sales where would you like to use them. | ||||
King Pigeon GSM/3G/4G LTE S265 Data Loggers are special for remote monitoring the onsite temperature and
humidity. Not only for monitoring Temperature & Humidity in real-time, also support high/low .SMS/Call alert to max
10 user phone numbers.
The Data Logger with large memory that can save 200000 events. Moreover,It provides 2 Relay outputs for
automatically switch ON/OFF devices when Temperature & Humidity exceed high/low value and remote switch
ON/OFF Device by SMS or GPRS/3G/4G.
It has been designed as a cost effective, low power, self contained data logger. It has 8 temperature & Humidity
sensor inputs with embedded GSM/GPRS/
3G/4G module to provide an all in one instrument for data logging, Remote data acquisition, alarm and control.
Applications
Ø Server room;
Ø Warehouse;
Ø Weather Stations remote control and data logging;
Ø Oil pump monitoring;
Ø Transformer stations;
Ø Supervision and monitoring alarm systems
Ø Transformer stations;
Ø Medicine center;
Ø Drug store ,Seafood storage, Aquarium;
Ø Supermarket, hospital, Hotel;
Ø Billboard, Ads Signs LED, etc.
Ø Quad band 850/900/1800/1900Mhz GSM GPRS Module inside;
Ø 3G UMTS/HSDPA/4G Modules are optional.;
Ø 32 bit MCU, reliable performance with in-built watchdog;
Ø Support temperature & humidity monitoring remotely in real-time;
Ø Support 8 channel temperature&humidity input interface(AM230x series T/H sensors);
Ø Support 2 relay outputs,7A@125VAC 5A@125VAC 20A@14VDC;
Ø High/Low Alert via SMS/Call/GPRS;
Ø Supports 1 DNS or IP address as server;
Ø Supports Modbus TCP, TCP/IP protocol over GPRS/3G/4G network;
Ø Automatically resend the data while communication failure, GPRS failure will alert by SMS text;
Ø Supports remotely restart the device, and configure it by SMS commands remotely;
Ø Up to 10 users phone number to receive alarm and daily report SMS/Call;
Ø Timer report, interval period 1~65535 seconds, configurable; automatically upload status/Value to the authorized numbers;
Ø In-built rechargeable battery, power lost/recover alarm, low maintenance, 24×7 operation;
Ø In-built internal clock, support 11 actions on schedule at pre-set time;
Ø Internal 16MB memory, logs more than 200000 records;
Ø Wall mount or 35mm standard DIN rail Design, convenient installation, Dimensions 70*88*30mm;
Ø Support Android/IOS APP, easily & friendly for use/config.
Ø Support remote upgrade the firmware via PC.
Ø Can be operated from anywhere, no distance limitation;
Ø Secure - Using caller ID and password for identification, unknown callers are ignored;
| Item | Reference Scope |
| DC Power Supply | Standard Adapter: DC 12V/1A Range 9~36VDC |
| Power Consumption | Standby:12V/70mA; WorkingMax.:12V/300mA |
| GSM/3G Frequency | 2G: 850/900/1800/1900Mhz 3G version Optional: (UMTS/HSDPA) W:900/2100@UMTS 900/1800@GSM; C:850/1900@UMTS 850/900/1800/1900@GSM; T:850/2100@UMTS 850/900/1800/1900@GSM; 4G LTE |
| SIM Interface | Supporting 3V SIM Card |
| External Antenna | SMA Antenna interface, 50 Ohm |
| Serial Interfaces | 1 USB Port |
| Temp.&Hum Inputs | 8 channel (AM230x Temperature&Humidity input) |
| Relay Outputs | 2 Relay Outputs 7A@125VAC 5A@125VAC 20A@14VDC |
| Memory Capacity | 16MB for 200000 record. |
| Backup Battery | 3.7V 900mAH |
| Exterior Dimension | 70*88*30mm |
| Installation | 35mm standard DIN rail(Optional) Wall mount (Default) |
| Net Weight | 500g |
Data Logger X 1
Antenna X 1
Backup Battery X 1 (Inbuilt)
AC/DC adaptor(12V1A) X1
User manual X 1
