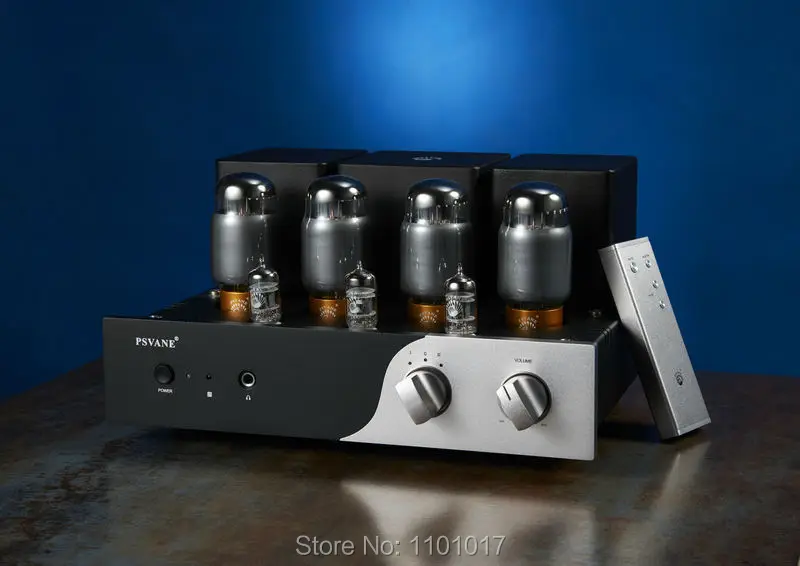

Remote Promo Sale Product provide headphone amp, tube amplifier hifi, tube amplifier Hot Limited PSVANE TC1 KT88 Push-Pull tube amplifier HIFI EXQUIS handmade lamp headphone amp with remote. Get 15% discount Now! Now US $509.15/piece. Hurry buy Now before back to normal price! Normal price US $599.00. Dont waste your time. Buy Now only in HIFI EXQUIS Trusted Seller Store!
Without any tube version: is without any tube(no tubes, only amplifier)
With TII KT88 Tube version: is with PSVANE MarkII TII KT88 tube like next photo:
With HIFI serie KT88 version: its with PSVANE HIFI serie KT88 tubes like next photo:
- Connection mode : Ultra linear connection mode
- Type: Push-Pull 2 power tube per channel
- Output Power: 35w x2 (RMS 8 ohms)
- Power consumption: 200W
- Frequency response: 15Hz-36KHz / (20Hz-30KHz)
- Harmonic distortion: ≤1.2% (1KHz)
- Input Sensitivity: 290mV
- Input impedance: 100K
- Output Impedance: 4 ohms - 8 ohms
- Headphone Output Impedance: 32 ohms - 300 ohms
- SNR: 89dB
- Power supply voltage: AC 110v-120v or 220v - 240V 50 / 60Hz ± 5%
- Size: 340 (W) × 181 (H) × 255 (D) mm
- Bias voltage 400mv
- Net weight: 19kg
- Package weight: 20kg
- Vacuum tubes:
- PSVANE KT88-TII Collector Version × 4 or HIFI serie KT88× 4
- PSVANE special customize 12AU7 × 2, 12AX7 × 1
Complete analytical TC1
- Tube Amplifiers Soul: Transformers
As tubes and tube amp industry practitioners for many years, we recognize that, tube amp soul necessarily transformer. As early as the flagship T845 has just launched, many of my friends have this question that can make a good sound noble tube, but do not necessarily come to a good transformer, but the T845 proved sound Noble does have the ability to do of Chinas most comprehensive and most musical tube amp, simply it is that the transformer. The TC1, for transformer choice of materials, production, technology is very particular about: we continue to choose audio expensive silicon steel imported from Europe, Taiwan joint venture factory audio dedicated wire; with almost the same with the flagship unique STAGED around the law; and strict application of the encapsulation process; accurate detection output matched all cattle, not good enough to warehouse transformers would rather not have installed will not be perfunctory. And it turns out, the power output transformer and power transformer, the sound performance TC1 used is very good: the sound style typical of European Humanities, sentimental, but not artificial; lines clear and precise, but not flow in the stereotype, the musicality and sound quality last achieved the desired balance.- Core of Tube Amplifier: Voccum Tubes
TC1 excellent performance, largely relying on sound noble tubes. As the real core tube amp, tube sound pros and cons, the quality is good or bad determines the success of this little tube amp. As the world leader in audio tube sound tube Noble has been applied to high-class tube amp and even flagship models. Meanwhile, in addition to sound noble, any other size brands Danji used tubes, are purchased, whether the electrical properties of the tube itself, pairing bias on the tube and the sound performance characteristics and frequency response distribution transformer design and other aspects of synchronization , are likely to occur discounts. These aspects, as it happens all the advantages of noble sound tube amps. Its comparison of competing products, we actually have the final say in this session, but due to other reasons, we can only put more thinking space left to the user.- Absolute fever materials TC1 with a lot of imported components, large custom from Europe advanced audio-specific coupling capacitors, electrolytic, small to key parts of the single-crystal copper, 6N copper wire connection, not something comparable retail uneven.- The perfect design inside and outside TC1 is rare in China danji industry works with excellent design sense, whether it is aluminum front panel "China Eight Diagrams" shape and meaning, or the whole texture, tone conveyed by the elegant taste and restrained style, they are out of general bravery machine without content, homogenization of style, with distinctive facial features family. Gossip is the basic concept of ancient Chinese philosophy, Promise of Health has a very, a very a Tai Chi two appearances, two appearances of Health four images, four images and speech gossip - gossip is also proud of the profound Chinese civilization lies, gossip conveyed harmony, coexistence, integration, nature and music demands resonates wonderful symbiosis; the sound itself is a culture, Chinas sound many times only to be used as cheap industrial products, ignoring their own culture and heritage. In addition, the nobility of sound "sense and form, reaching God," the concept has been passed again on TC1: TC1 The circuit, after decades of stormy temper again after repeated optimization, and eventually with the transformer and tubes school sound stereotypes, in key aspects of school sound, the sound of the Japan Overseas Cooperation nobility team once again played an important role, in fact, is often said that good music sound aristocratic sense, largely from this paid off; in order to do may be concerned about the user experience, we do not excessive pursuit of power the size of data, but chose a better musical sense, easier to use bias adjustment method, relying on the nobility of the tube sound quality assurance will be used for a long the operating point of the period to maintain accurate user when the sound of the future to replace the high level of nobility tubes will be very convenient.
- Other (complete detection means, a complete package, enthusiastic standardized service)
Brand manufacturers as a basic requirement tube amp, TC1 has full and complete testing means foolproof packaging, tubes and machines both separation and detection of the end of Taiwan, or the whole static testing, dynamic aging, anti-throwing machine compression testing, We do our best to give the greatest all-round protection TC1; at the same time, aristocratic voice service has a good reputation in the industry, in the TC1 also complete transmission: fast, comprehensive, intimate
TC1 english user manual link:
hifi.exquis.free.fr/manual/PSVANE-TC1-Use-Manual-1.0.pdf
Tube Amplifier Precautions
1. Tube amp must connected with speakers before turning ON. Strictly prohibit send signals to amp without connected loads(speakers) or load short circuit when the switch is ON. (Hifi exquis 1101017)
2. Too high or too low power supply voltage does irreversible harm to the amp,preferably less than 5% of the specified voltage. If your mains voltage exceeds this value, often best to use with the AC power supply.
3. Temperature is higher when tube amps working, placing attention to ventilation, cooling. (Hifi exquis 1101017)
4. In the boot or just shut down for a period of time (within 30 minutes) Do not spill liquid on the tubes.
5. You should take about 100h time to operate the amp.RUN-IN to the amp gives its best and stable sound.so during the first 100h use time the sound maybe is not the best,you can also use your own run-in method.
6. If you donot sure how to plug the tubes, please contact us before try it
Speakers connection
All tube amplifier used with stereo mode: L(left) and R(right) speakers.
Normally there are 6 speaker cable connectors: +8L, +4L, -0L, -0R, +4R, +8R
Example: +8L and -0L are for connecting with your Left 6-8ohms speaker
-0R, +4R is for connecting with your Right 4ohms speaker
Tube amplifier guaranty :
Tube amplifier Guarantee: 6 months for tubes sold with amplifier, 1 year for the amplifier and PSVANE tube
